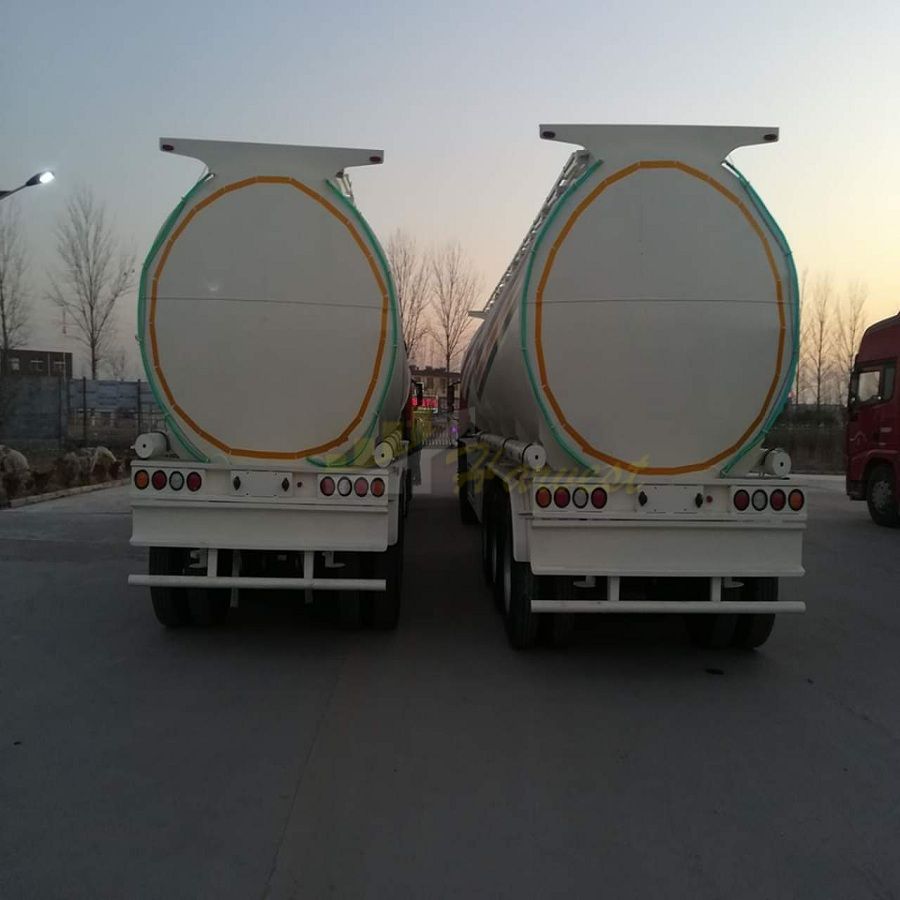

The fuel tank semi trailer is normally used in oil transportation such as fuel, diesel, oil, lubricant oil, and other oil .
The tanker shell is specially designed to bear the large air pressure.
The tank design helps to shorten the discharge time and reduce the residual during unloading
1. We have superior quality, reasonable price, advanced technology, fast delivery, professional service from
order to shipping.
2. Optional trailer sizes and styles are available.
3. Certificate/quality approvals: ISO9001:2008, CCC, BV, SGS, etc.
4. Small order quantity can be accepted. MOQ is 1 unit.
5. Exported to many countries from Southeast Asia, Africa and more than 50 countries.
|Function||transport Fuel, Oil, Diesel|
|Thickness(mm)||Material Q235 carbon steelTank body and separate compartment plate: 5mmDish end plate: 6mm|
|Welding standard||All welding are to be done by qualified welder per applicable national standard|
|Compartment||3 compartments ( 3*14000L )|
|Manhole cover||3 units Safety manhole with breath valve, Aluminum, diameter 500mm.|
|Discharge valve||3 units|
|Bottom valve||3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand|
|Discharge pipe||3 seamless steel tube, 6m|
|Tanker body test||Hydrostatic test to 5 psi (35 Kpa) on each compartment|
|Axle||14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance|
|Tire||12R22.5, 12pcs. Taitong brand|
|Rim||9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs|
|Suspension system||Mechanical Suspension|
|Steel Spring||10/10/10 leaf spring with 90mm(W) *13mm(thickness)|
|Electrical System||Chinese standard 24V lighting system|
|Brake system:||Dual line pneumatic brake, SAE hose and connector,no ABS|
|Brake air chamber||6 units T30/30 spring brake chambers|
|Emergency relay valve||Wabco relay valve|
|Tire Type and quantity||1200R22.5 12units|
|Traction/King Pin||2 and 3.5 removable Kingpin, bolted in type 500mm from the front face of the front bolster|
|Landing Gear||Zhenhua brand|
