Price:
$15000-$21000 / EA
1 Unit / EA (Min. Order)
Product Description

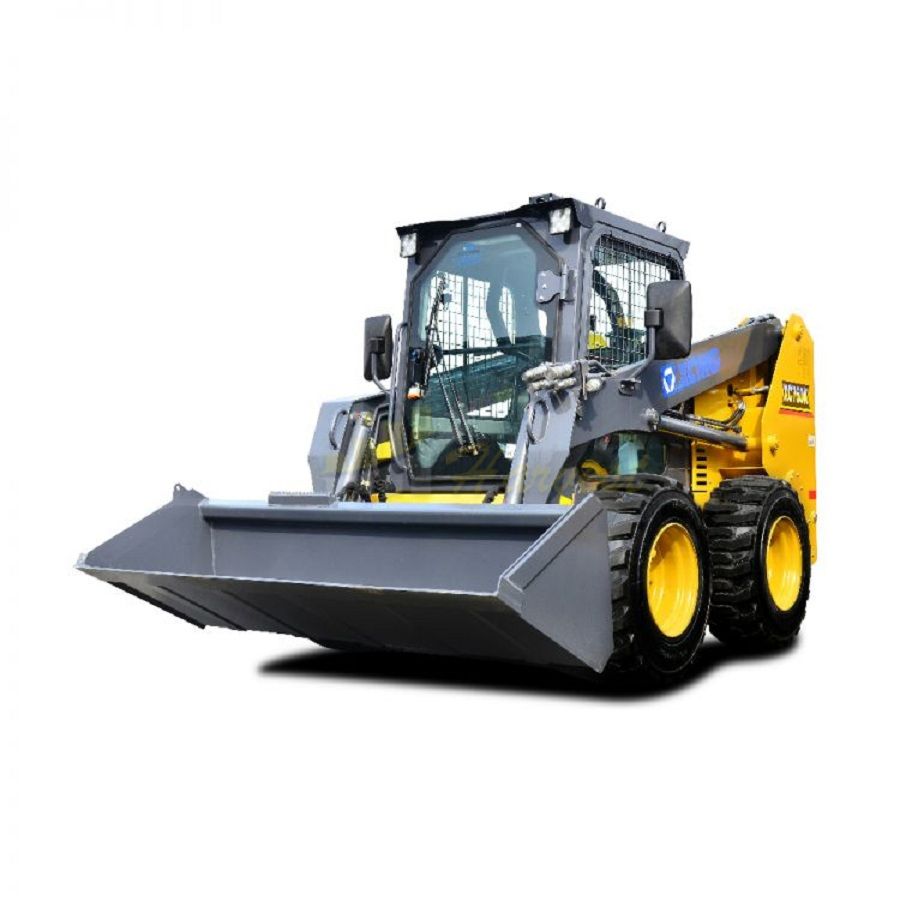

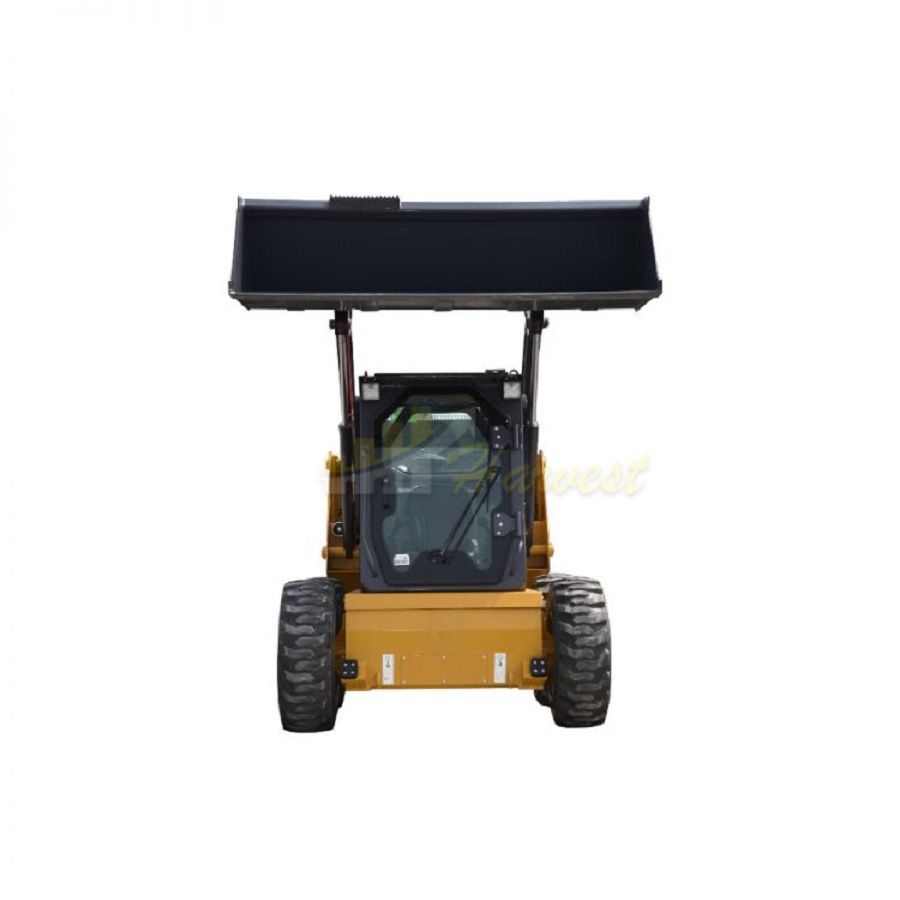

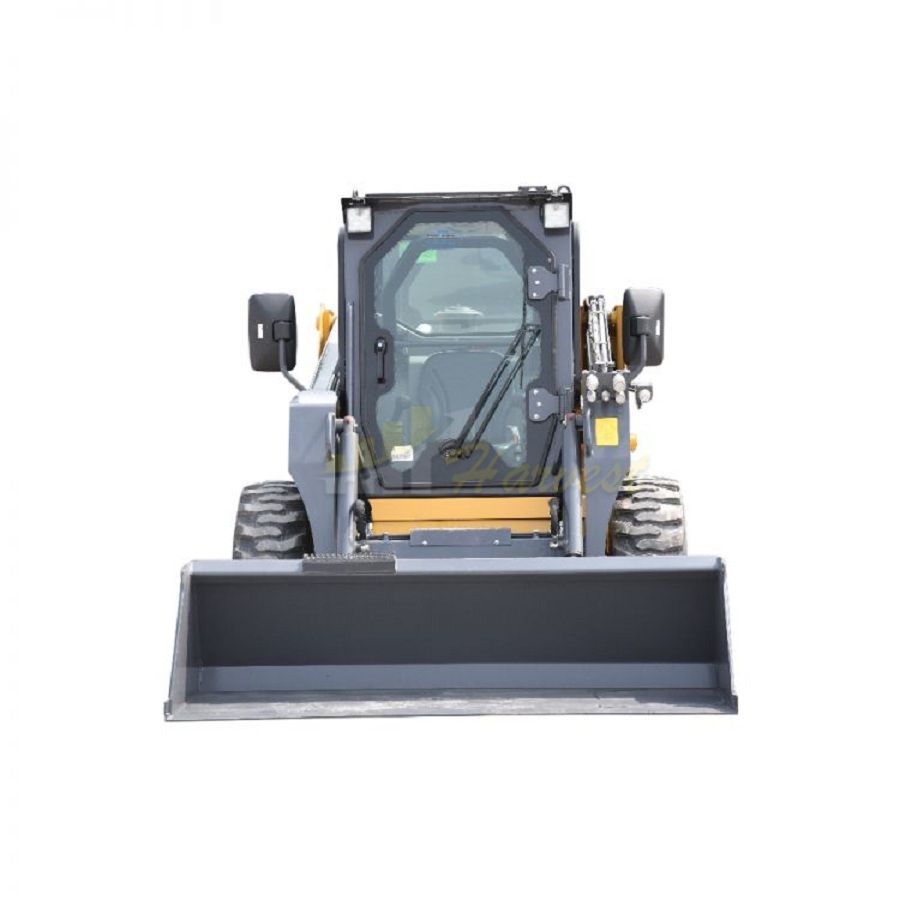

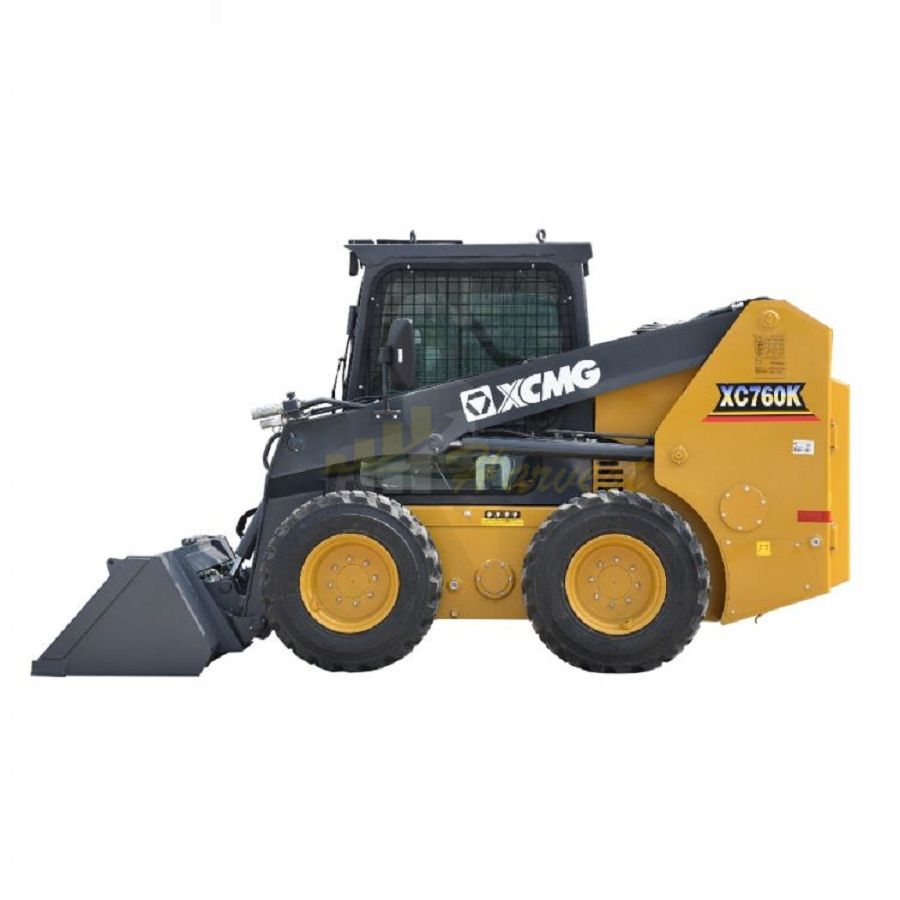

XC760K Skid steer loader
1. The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
2. Compact structure, low turning radius, and strong site adaptability.
3. The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.
4. The ROPS & FOPS cab and the seat belt, bumper, fire extinguisher, and safety hammer equipped guarantee the personal safety of the operator.
5. The cab can be tilted backward for a large angle to make the repair and maintenance portions more accessible.
Specification
| Description | Specification | Unit | ||
| Bucket capacity | 0.45 | m³ | ||
| Rated Load | 1080 | kg | ||
| Tipping Load | 2160 | kg | ||
| Operating Weight | 3650 | kg | ||
| Max.breakout force | 22 | kN | ||
| Engine | Manufacturer | YANMAR | WEICHAI | |
| Model | 4TNV98T | WP4G80E231 | WP4.1G82E301 | |
| Rated Power | 82.2hp 61.3kw | 80hp60kw | 80hp60kw | |
| Rated Speed | 2500rpm | 2300rpm | 2400rpm | |
| Cooling Mode | water cooling | |||
| Performance Parameter | Operation Mode | Pilot hydraulic control & multi-function electronic control | ||
| Tire | 12-16.5 | |||
| Max.speed | 12.5km/h | |||
| Hydraulic System | Hydraulic flow rate (L/min) | 95 | 87.4 | 91.2 |
| Hydraulic Pressure | 210bar | |||
| Max.operating height | 4180 | mm | ||
| Length with bucket | 3610 | mm | ||
| Max.unloading height | 2450 | mm | ||
| Wheel Base | 1188 | mm | ||
| Ground Clearance | 205 | mm | ||
| Capacity of Diesel Tank | 95 | L | ||
| Capacity of Hydraulic Oil Tank | 70 | L | ||
