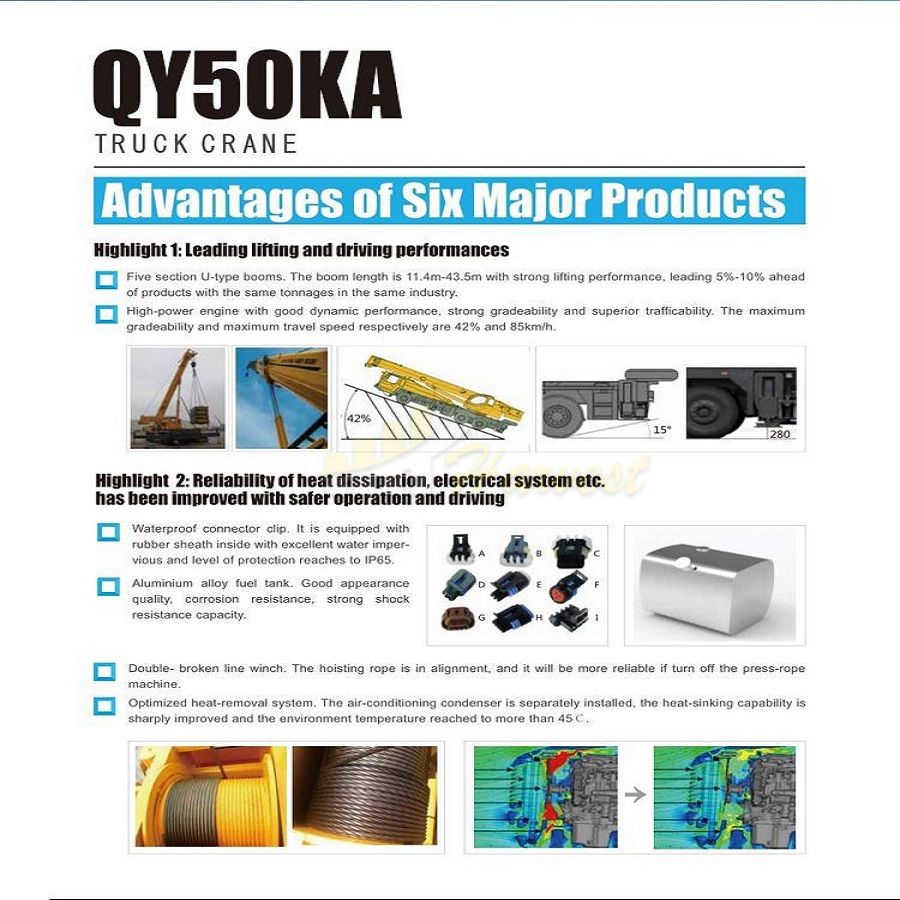

Leading lifting anddriving performances
Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.
High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
Reliability of heat dissipation, electrical system etc. has been improved with safer operation and driving
Waterproof connector clip. It is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65.
Aluminium alloy fuel tank. Good appearance quality, corrosion resistance, strong shock resistance capacity.
Double- broken line winch. The hoisting rope is in alignment, and it will be more reliable if turn off the press-rope machine.
Optimized heat-removal system. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45℃.
Special confluence multi-valve has been designed. The Mature and reliable double-pump confluence technique, aintaining the advantages of efficient operationdouble-pump confluence technique is adopted in raising and falling of winch, extending and retracting of lazy boom and luffing, leading ahead of luffing and extending and retracting operations.
Air-aid shift gears and 45% of shifting forceis reduced
Special air-aid shift gears protection mechanism. The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
Appearance molding is newly upgraded, humanized design and comfortable riding manipulation
New operating house, wheel house, engine hood and machine shed, novel appearances, fine lines of the complete machine appearance, shows its elegant appearance.
|Max.rated lifting capacity||50000||kg|
|Min.rated working radius||3||m|
|Boom Length||Base Boom||11.4||m|
|Fully Extended Boom||43.5||m|
|Fully Extended Boom+jib||59.5||m|
|Lifting Height||Base Boom||11.9||m|
|Fully Extended Boom||44||m|
|Fully Extended Boom+jib||58.1||m|
|Total Vehicle Mass in travel configuration||42200||kg|
|Axle Load||Front Axle||16200||kg|
|Engine Rated Power||276/2200||kw/(r/min)|
|Engine Rated Torque||1500/1300-1600||N.m/(r/min)|
|Max. Travel Speed||85||Km/h|
|Oil Consumption per 100km||40||L|
