Price:
$29,000-$32,000 / EA
1 Unit / EA (Min. Order)

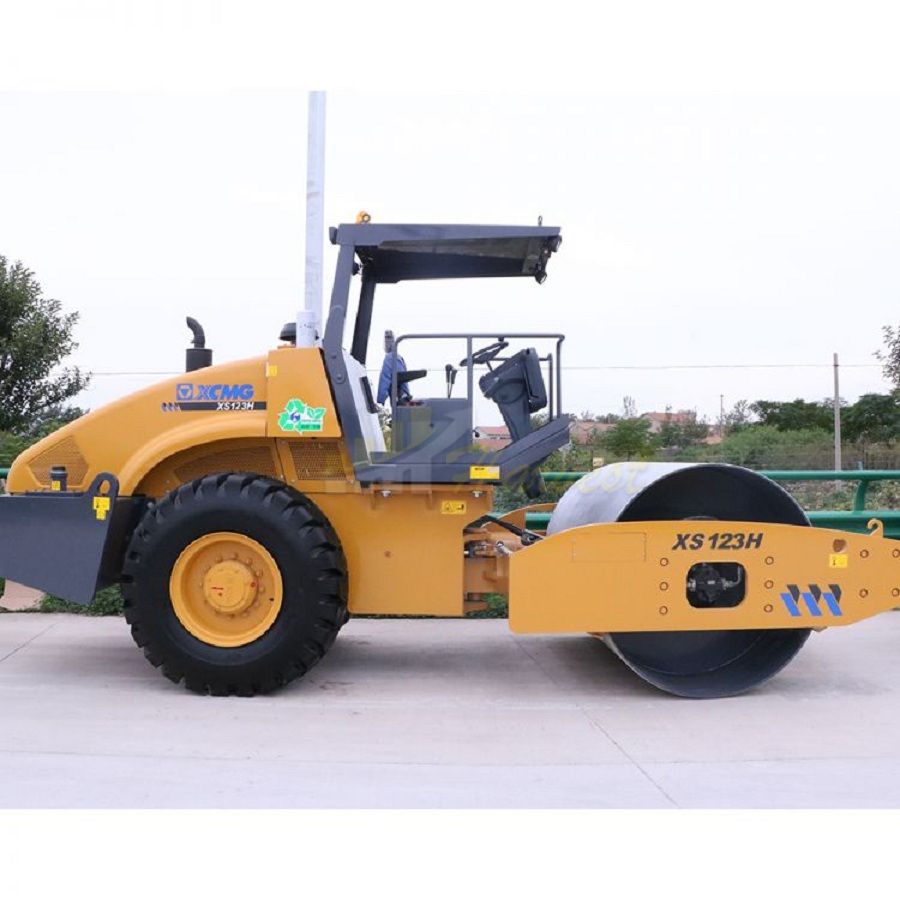

Product Description
The XS123H fully hydraulic single-drive vibratory roller is more comfortable to operate and offers superior compaction performance and efficiency. It is suitable for compaction operations such as concrete, stabilized soil, pebbles, sandy soil, and sticky soil. It is an ideal compaction device for the construction of high-grade highways, airports, ports,and embankments.
Drive wheel distribution weight: 6400kg
Vibratory drum distribution weight: 5600kg
Vibration frequency: 30/35Hz
Theoretical amplitude: 1.8/0.9mm
Wheel base: 3040mm
Compaction width: 2130mm
Minimum turning radius: 6800mm
Vibratory drum diameter: 1513mm
Minimum ground clearance: 431mm
Engine Model: SC4H135G2
Vibration system pressure: 18MPa
Steering system pressure: 16Mpa
Specification
| Drive wheel distribution weight | 11000kg |
| Vibratory drum distribution weight | 11000kg |
| Static line load | 516N/cm |
| Vibration frequency | 28/33Hz |
| Theoretical amplitude | 1.86/0.93mm |
| Exciting force | 374/290 kN |
| Speed range | 0-4.5km/h |
| Speed range | 0-7.3 |
| Wheelbase | 3180mm |
| Compaction width | 2130mm |
| Theoretical climbing ability | 44% |
| Minimum turning radius | 6500mm |
| Vibratory drum diameter | 1600mm |
| Minimum ground clearance | 440mm |
| Dimensions | 6220×2430×3200mm |
| Vibration system pressure | 35MPa |
| Steering system pressure | 38MPa |
| Drive system pressure | 16MPa |
