HOWO 371hp Truck with XCMG 10T Telescopic Crane

Price:

$49,000-$55,000 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 25-30 Days

Shipping: Container Flat Rack Roro

Inquire Now

Product Description

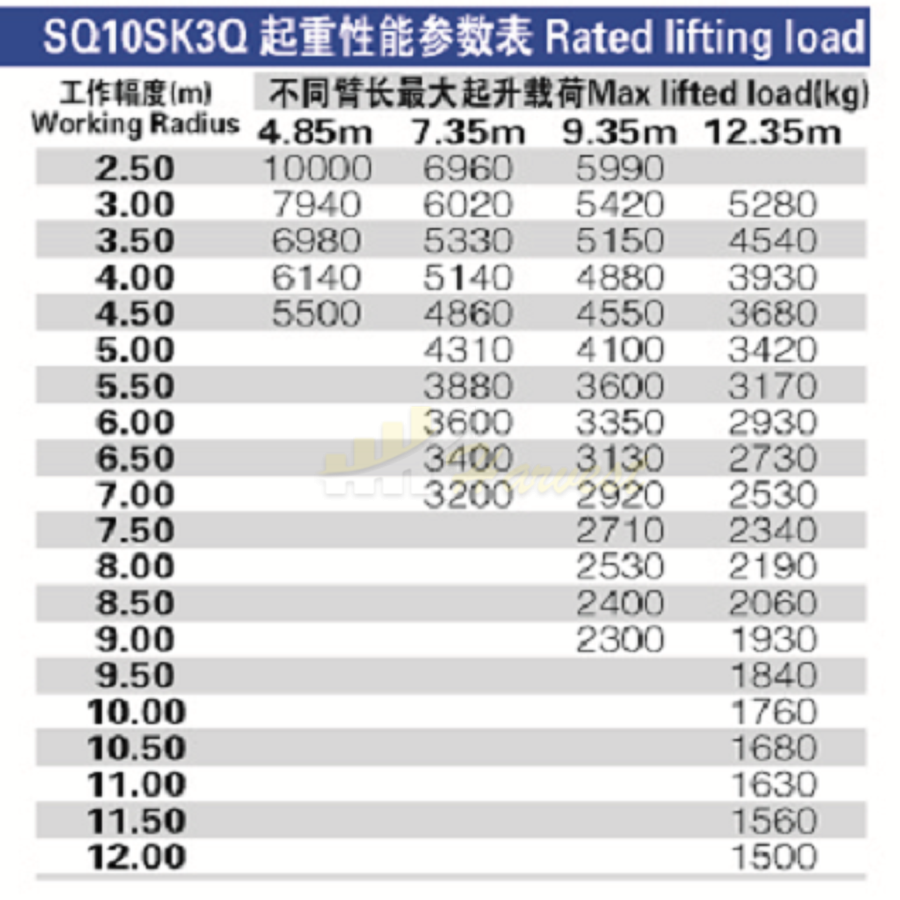

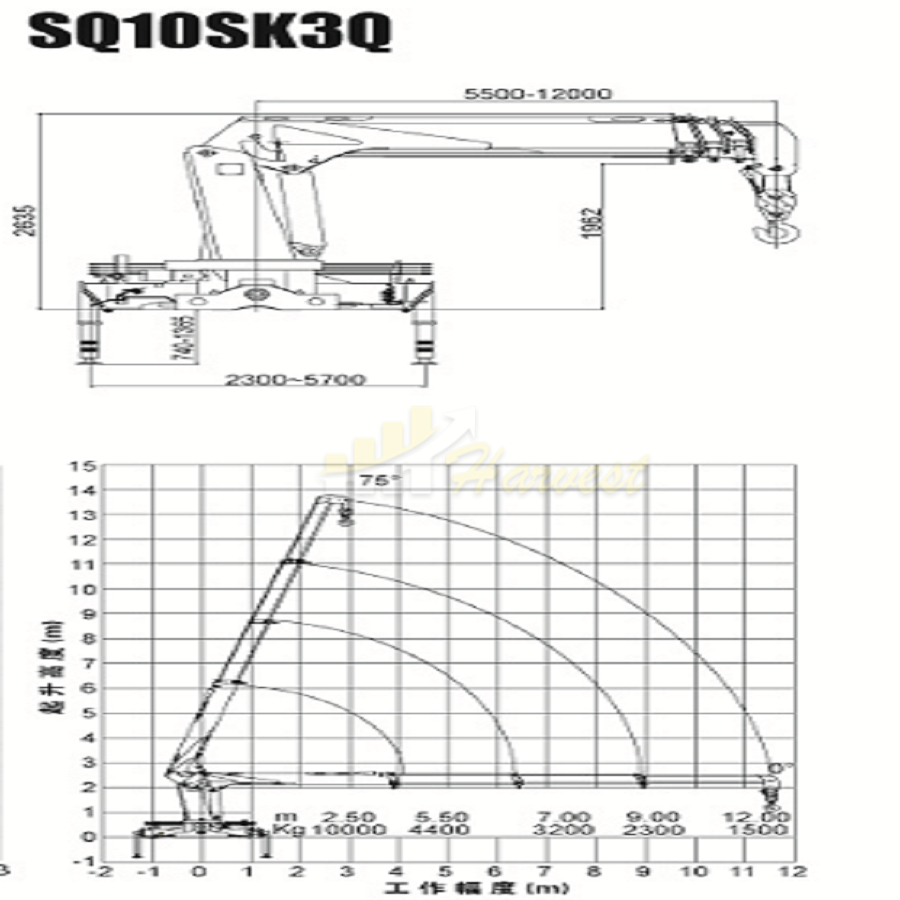

SQ10SK3Q Telescopic Boom Crane

Max.lifting Capacity: 10,000kg

Max.lifting Moment: 25T.M

Recommend Power: 30kw

Max. Oil Flow of Hydraulic System: 63L/min

Max. Pressure of Hydraulic System: 26MPa

Fuel Tank: 160L

Crane Weight: 3.765 ton

Installaton Space: 1150mm

Rotation Angle: 360° all rotation

Features & Advantages

1. Throttle Control System

Changing the form of previous manipulation and throttle operation individually，realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady，it can easily to carry out the lifting work.
2. End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3. Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks, the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4. Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle to avoid all kinds of accidents that caused by swaying.
5. Dual pump converging
The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch, at the same time, it can realize the compound action of crane.
6. Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.

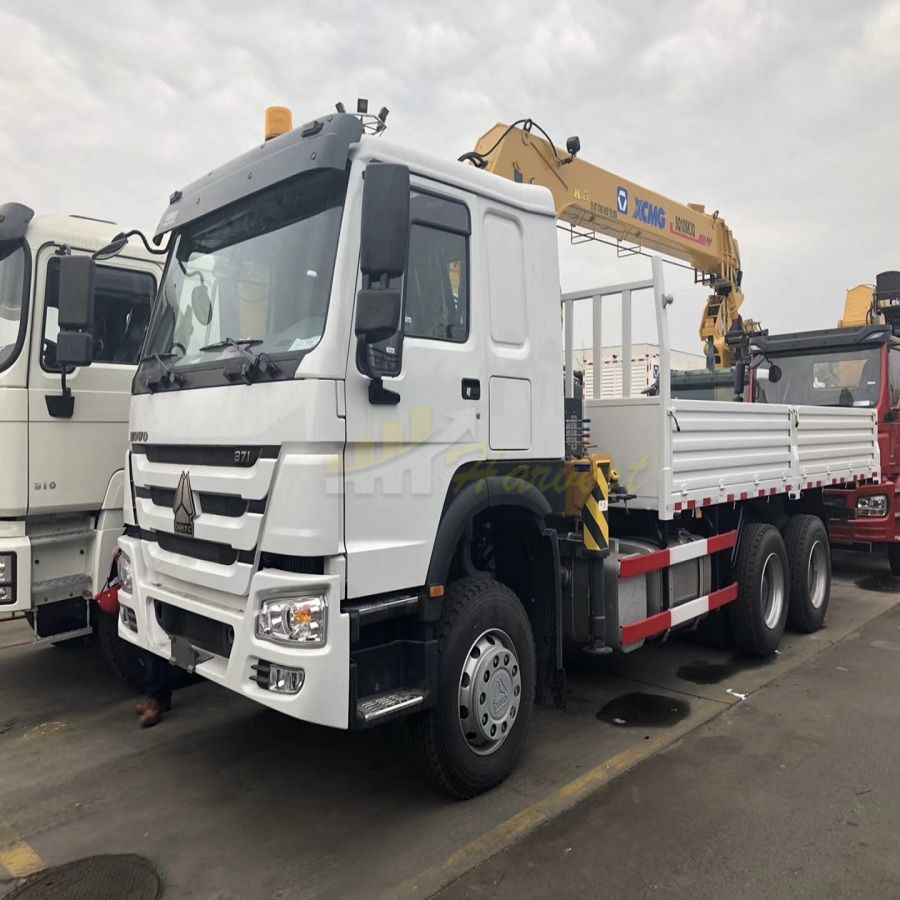

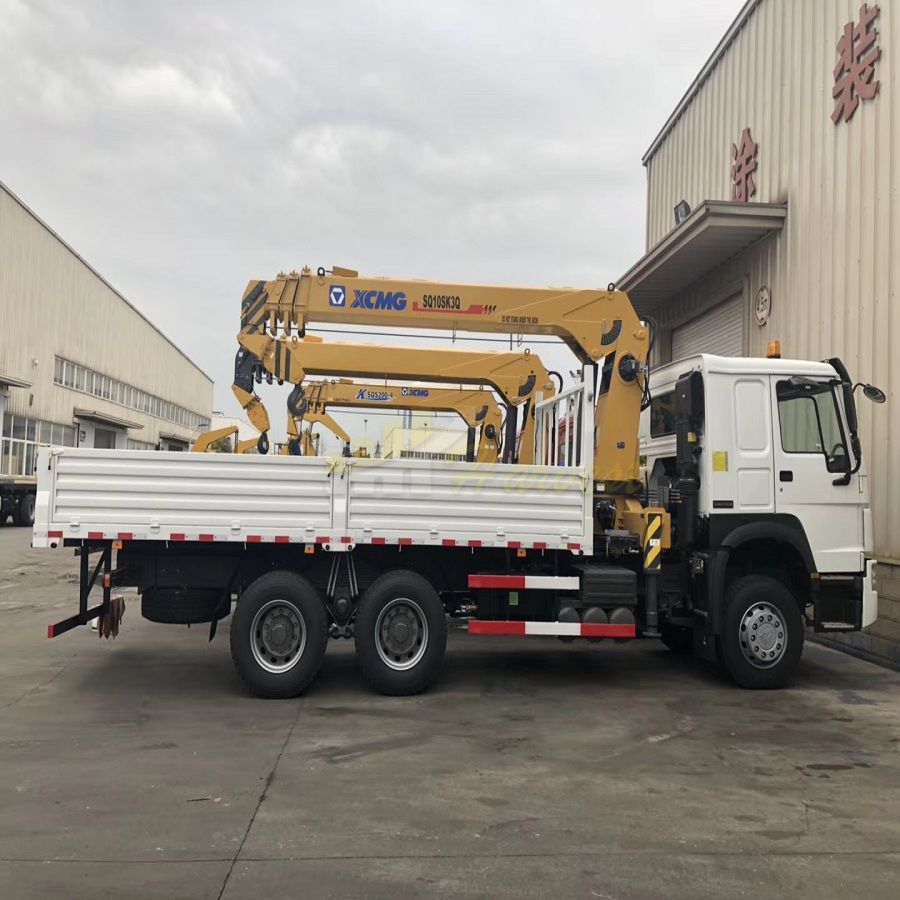

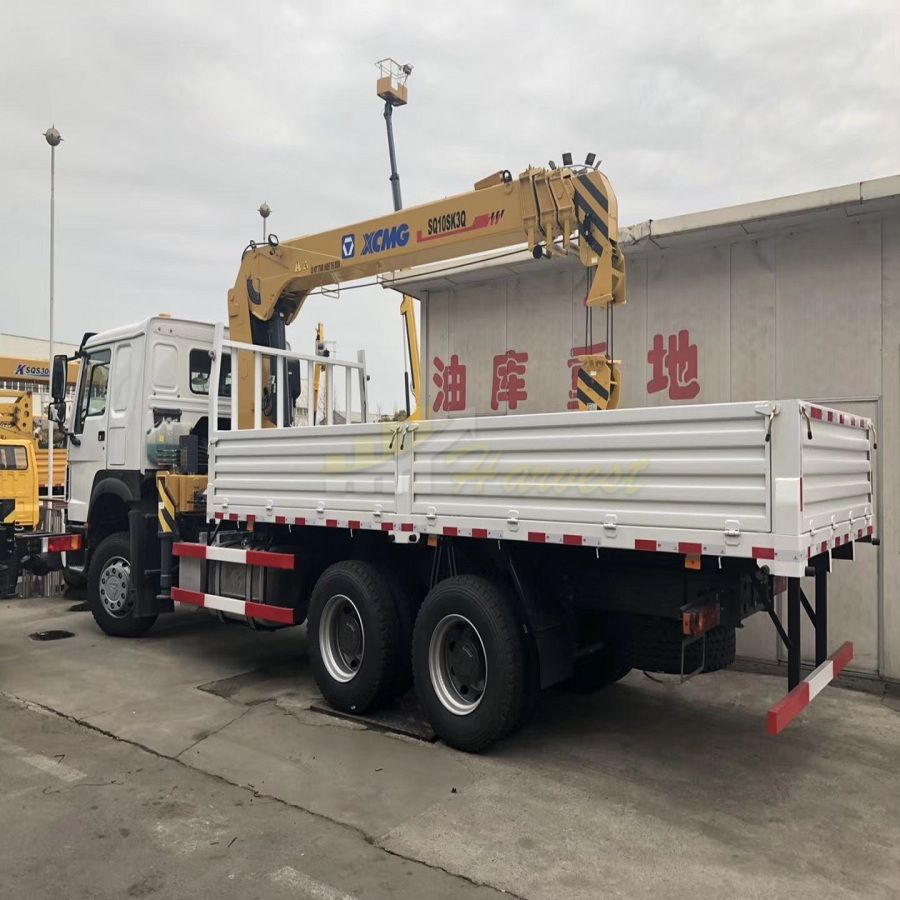

HOWO 371hp Truck with XCMG 10T Telescopic Crane

Specification

Truck Model: ZZ1257S4641W
Weight	Kerb weight (Kg)		11330
	Gross vehicle weight (Kg)		25000
Dimension	Length(mm)		9500
	Width(mm)		2496
	Height(mm)		3718
	Wheel base (mm)		4600+1350
Performance	Maximum driving speed (km/h)		92
	Fuel consumption (1/100 km)		35
Cabin	Model	SINOTRUK HW76 Lengthen cab
	HW76 Long cab, with two seats and one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air conditioner and high dumper.
Engine	Model	WD615.47(Euro II)
	Type	Diesel Engine, 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Horsepower	371hp
	Maximum output Kw/r/min	273/2200
	Maximum torque N.m/r/min	1500/1100-1600
	Bore x Stroke	126x130mm
	Displacement	9.726L
Transmission	SINOTRUK HW19710 transmission ,10 forward and 2 reverse
	I II III IV V VI VII VIII IX X
	14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1
	R1-13.91 R2-3.18
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Steering	ZF8118 (ZF8098 is optional) hydraulic steering with power assistance.
Front Axle	SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear Axles	SINOTRUK HC16 (2x16 ton loading capacity)Pressed axle housing, central double reduction with differential locks between wheels and axles .
Brake System	Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Tires	12.00R20 radial tire with 1 Spare tire ( total 11pcs)
Electrics	Operating voltage: 24V,negative grounded Batteries: 2x12V,165Ah horn, headlamps,fog lights, brake lights,indicators and reverse light.
Oil Tank	Square type-300L Aluminum alloy fuel tank
Cargo Box Size	6000x2300x600mm, bottom 3mm, side 1.5mm
Crane Model & Capacity
XCMG telescopic 3-section SQ10SK3Q 10 Ton
