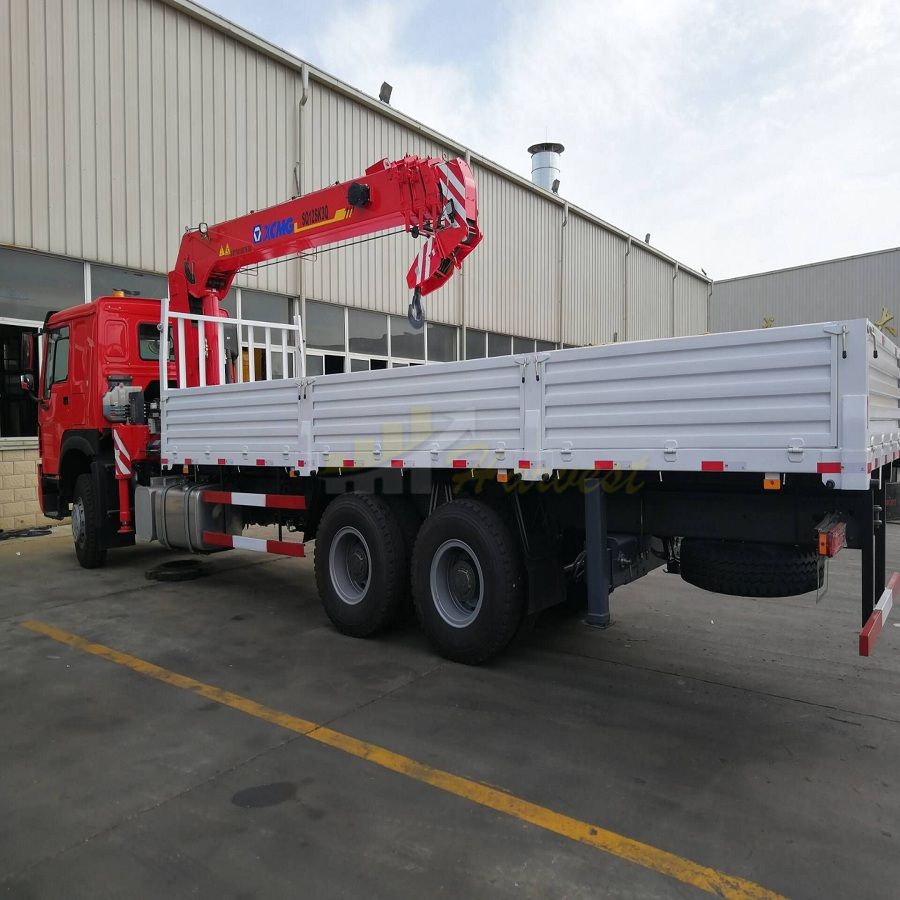

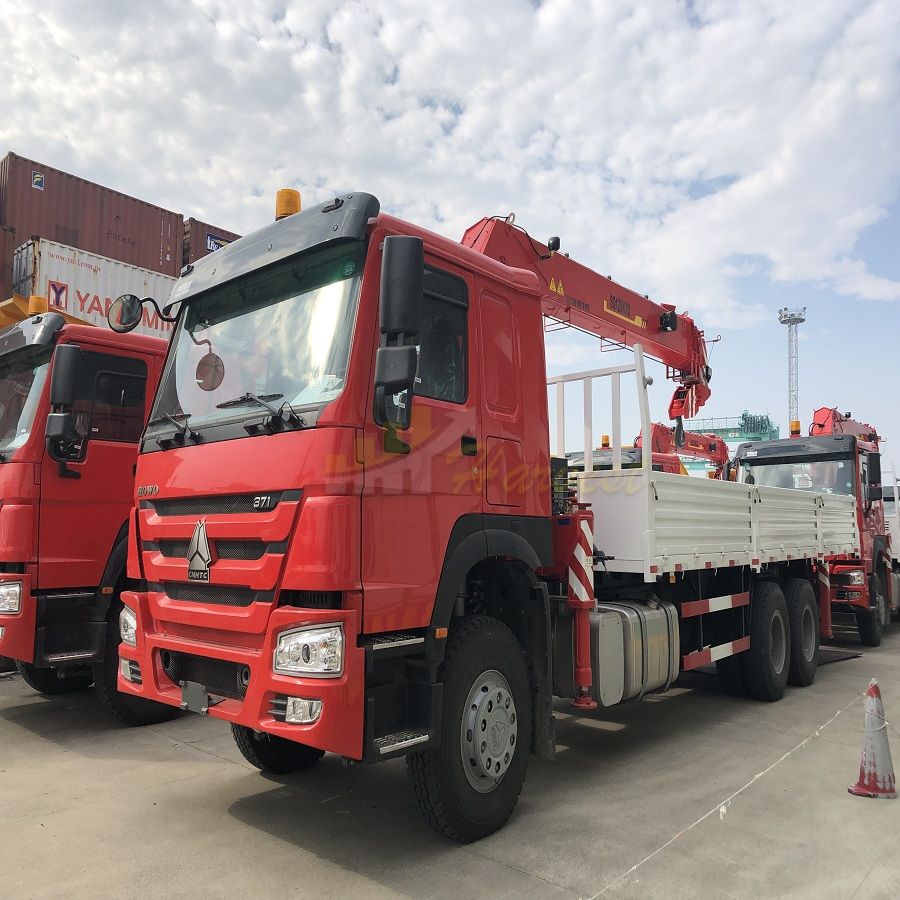

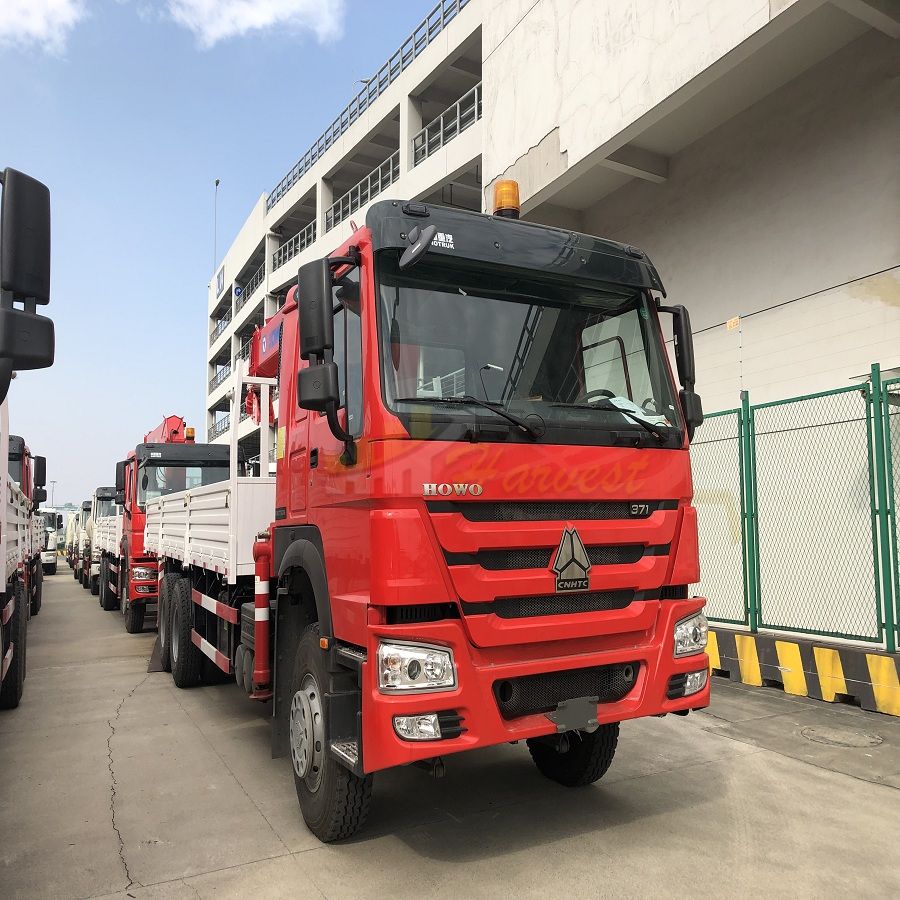

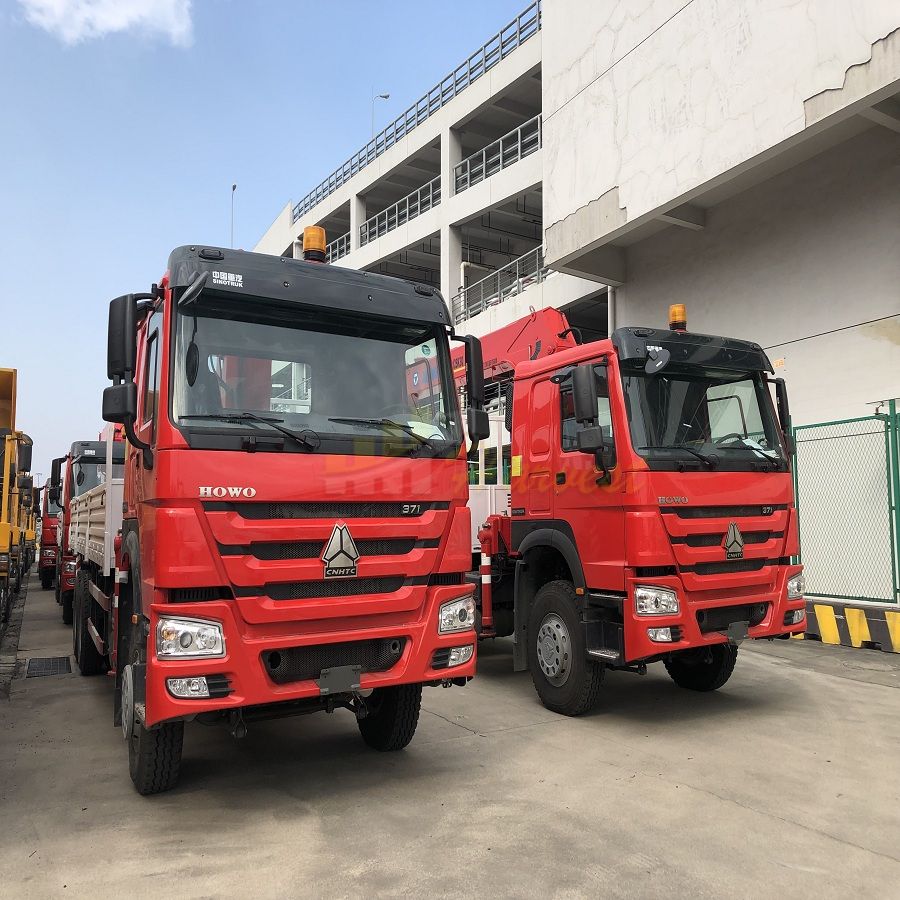

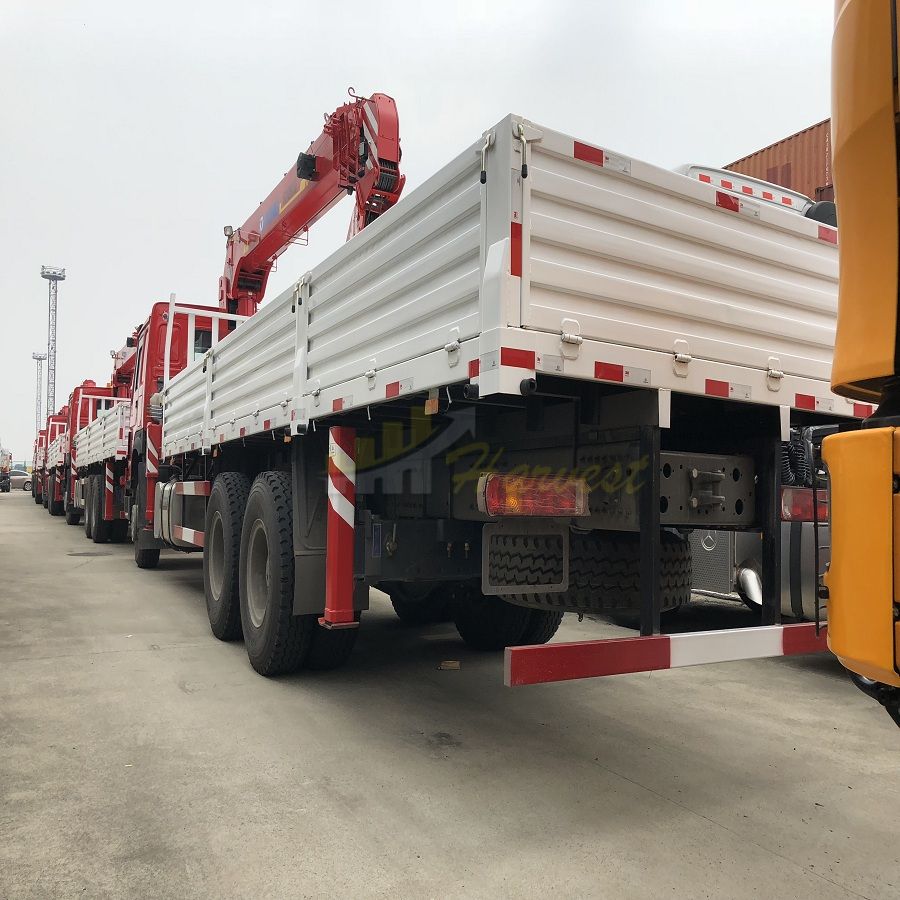

XCMG 12 Ton Telescopic Boom Truck Mounted Crane (SQ12SK3Q)

Price:

$50,000-$65,000 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 20-25 Days

Shipping: ContainerFlat RackRoro

Product Description

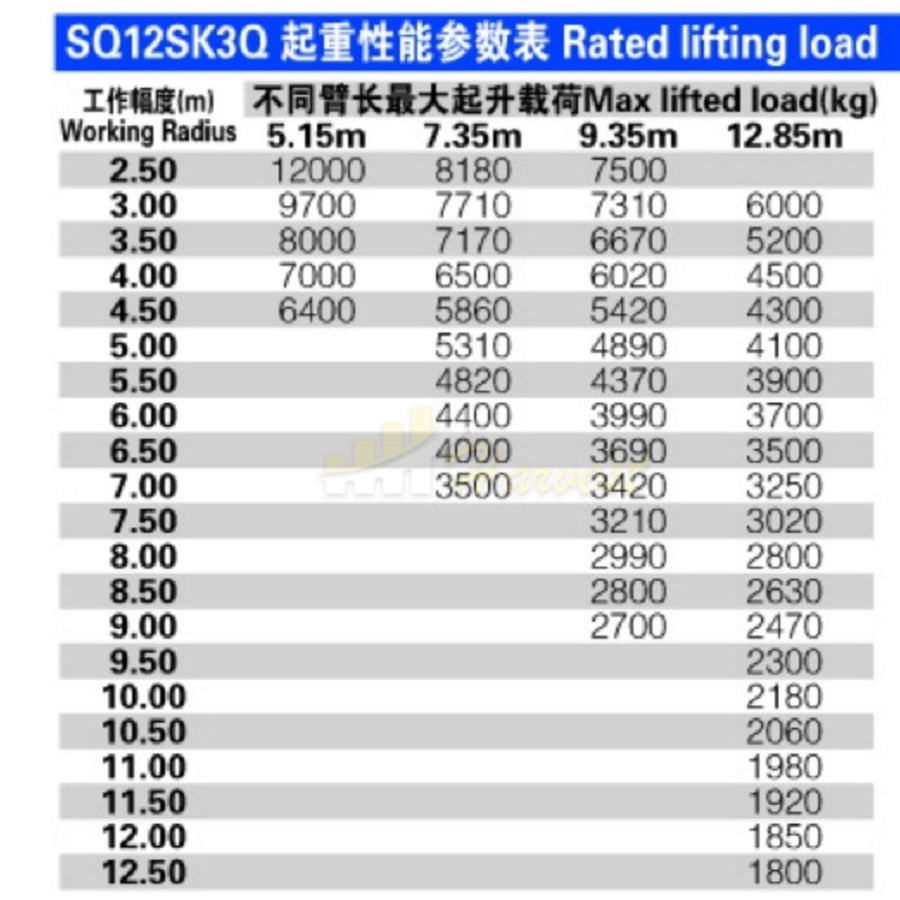

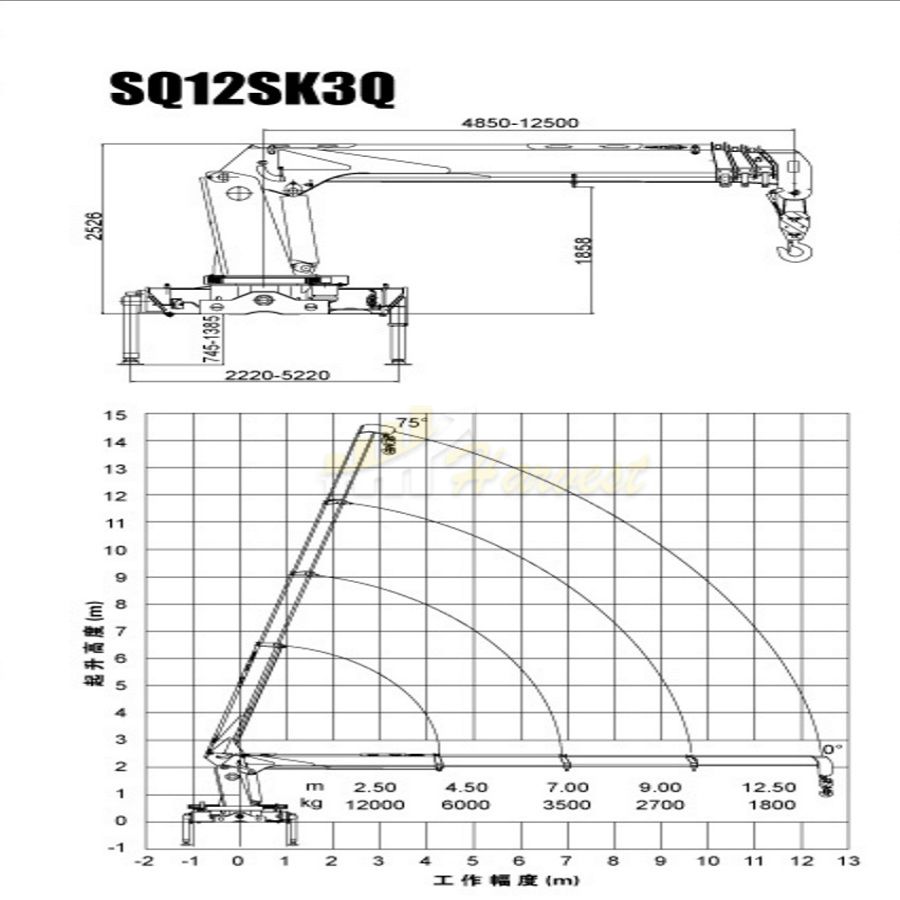

SQ12SK3Q Telescoping Boom Crane

Max.lifting Capacity: 12,000kg

Max.lifting Moment: 30T.M

Recommend Power: 30kw

Max. Oil Flow of Hydraulic System: 100L/min

Max. Pressure of Hydraulic System: 26MPa

Fuel Tank: 260L

Crane Weight: 4.46 ton

Installaton Space: 1300mm

Rotation Angle: 360° all rotation

Features & Advantages

1. Throttle Control System

Changing the form of previous manipulation and throttle operation individually,realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.
2. End position automatic hook device
        Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3. Hoisting overwinder device
        If a user is negligent or unfamiliar with the operation of lifting hooks, the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4. Slewing locking device
        Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle to avoid all kinds of accidents that caused by swaying.
5. Dual pump converging
        The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch, at the same time, it can realize the compound action of crane.
6. Torque limiter
         It can select torque limit overload protection device to prevent users because of  negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.



XCMG 12 Ton Telescopic Boom Truck Mounted Crane (SQ12SK3Q)XCMG 12 Ton Telescopic Boom Truck Mounted Crane (SQ12SK3Q)XCMG 12 Ton Telescopic Boom Truck Mounted Crane (SQ12SK3Q)

Specification

Truck Model: ZZ1257N4647C
WeightKerb weight (Kg)11330

Gross vehicle weight (Kg)25000
DimensionLength(mm)9500

Width(mm)2496

Height(mm)3718

Wheel base (mm)4600+1350
Performance
Maximum driving speed (km/h)92

Fuel consumption  (1/100 km)35
CabinModelSINOTRUK HW76 Lengthen cab

HW76 Long cab, with two seats and one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air conditioner and high dumper.
EngineModelWD615.47(Euro II)

TypeDiesel Engine, 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Horsepower371hp

Maximum output Kw/r/min273/2200

Maximum torque N.m/r/min1500/1100-1600

Bore x Stroke126x130mm

Displacement9.726L
TransmissionSINOTRUK HW19710 transmission ,10 forward and 2 reverse

I        II        III       IV     V      VI     VII     VIII     IX    X

14.28  10.62  7.87  5.88  4.38  3.27  2.43  1.80  1.34   1

R1-13.91      R2-3.18
ClutchSINOTRUK Φ430 diaphragm-spring clutch, hydraulically operating with air assistance
SteeringZF8118 (right hand driving) hydraulic steering with power assistance.
Front AxleSINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear AxlesSINOTRUK HC16 (2x16 ton loading capacity)Pressed axle housing, central double reduction with differential locks between       wheels and axles, ratio 4.42
Brake SystemService brake:dual circuit compressed air brake
Parking brake (emergency brake): spring energy,compressed air operating on rear wheels
Tires12.00R20 radial tire with 1 Spare tire ( total 11pcs)
ElectricsOperating voltage: 24V,negative grounded
Batteries: 2x12V, 165Ah
horn, headlamps, fog lights, brake lights, indicators and reverse light.
Oil TankSquare type-400L Aluminum alloy fuel tank
Cargo Box Size7900x2500x600mm, bottom 3mm, side 1.5mm
Crane Model & Capacity
XCMG telescopic Crane SQ12SK3Q, 12 Ton
