Xcmg 20 Ton Single Drum Road Roller XS203J Factory Price

Price:

Negotiable / EA

1 unit / EA (Min. Order)

Payment Terms:

Delivery time: 7 days

Shipping: Container Flat Rack Roro

Inquire Now Next Product

Product Description

Standard Equipment: SDEC SC8D175.2G2B1 turbocharged diesel engine(128kw/1,800rpm, china stage ii emissions compliant), counter shaft powershift transmission(electro-hydraulic control, 3 forward shifts / 3 reverse ones, hangzhou advance), xcmg axles special for roller with air-assisted oil disc service brakes, double-frequency double-amplitude closed hydraulic vibration system, nbi vibration bearing, sauer danfoss or rexroth variable vibration pump and variable vibration motor, fully hydraulic articulation open steering system, eaton steering unit, standard smooth vibraton drum, cabin with air conditioner.

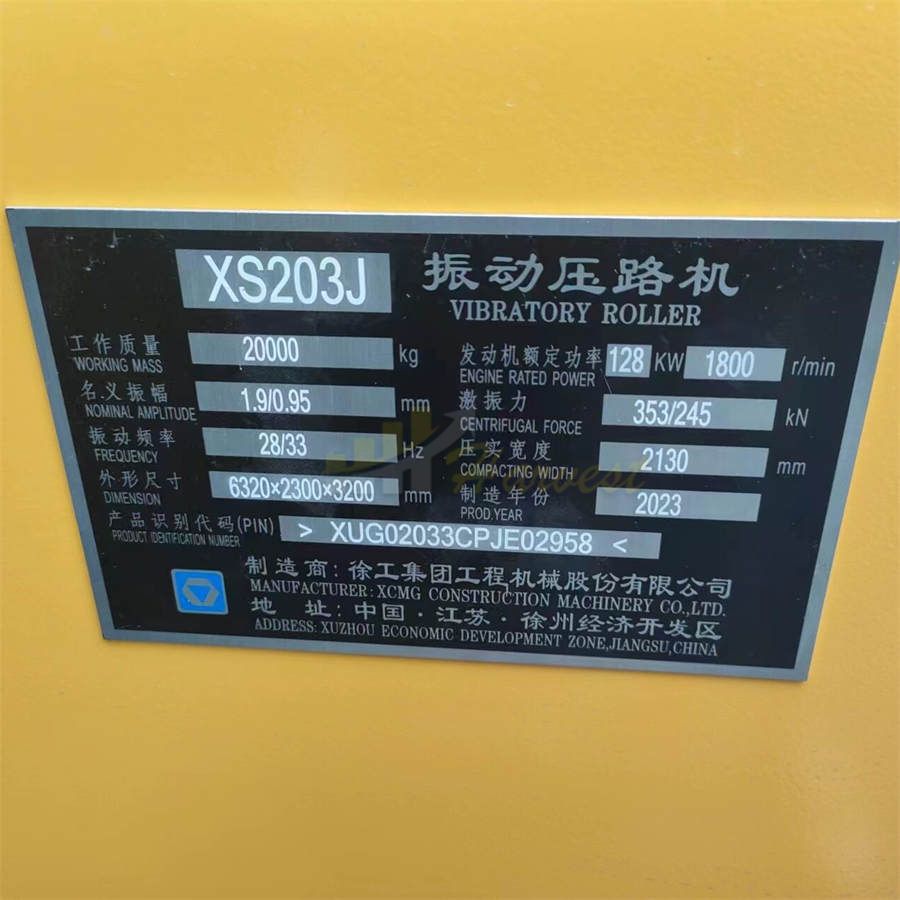

Specifications

Operating Weight: 20,000kg

Axle Load, Wheels: 10,000kg

Axle Load, Drum: 10,000kg

Drum Diameter: 1,600mm

Drum Width: 2,130mm

Static Linear Load: 470N/cm

Vibration Frequency: 28Hz/33Hz

Nominal Amplitude: (High/Low): 1.9mm/0.95mm

Centrifugal Force(High/Low): 353kN/245kN

Traveling Speed Range: 0~9.4 km/h

Wheel Base: 3,180mm

Theoretical Grade-ability: 30%

Min. Turning Radius: 6,500mm

Min. Ground Clearance: 448mm

Rated Power: 128KW/1,800rpm

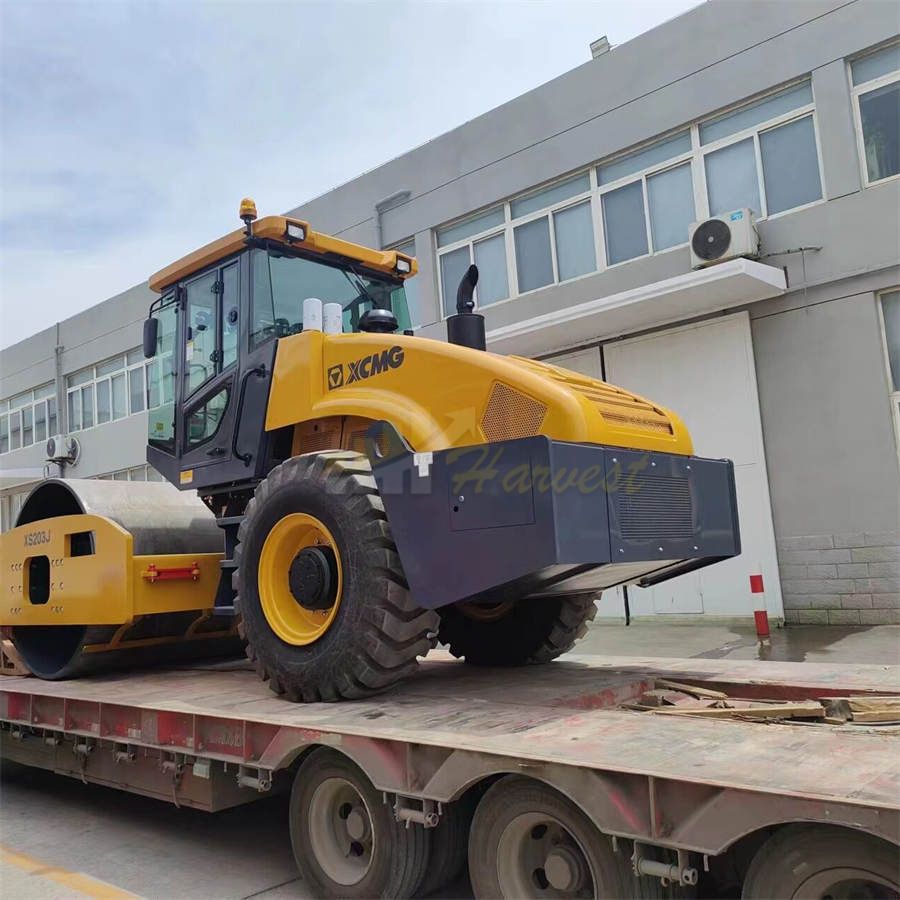

Shipping Details:

Operating Weight: 20,000kg

Dimension(LXWXH): 6,220mmX2,390mmX3,200mm

Shipping Volume: 55m3

HS Code: 84294011.00

Delivery Period: 15 days


Xcmg 20 Ton Single Drum Road Roller XS203J Factory Price

Specification

Model	Unit	XS203J
Operating weight	kg	20000
Load applied on front drum	kg	10000
Static linear pressure	N/cm	470
Speed range	km/h
Gear I		2.95
Gear II		5.78
Gear III		9.4
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±30
Oscillating angle	°	±11
Vibration frequency	Hz	33/28
Nominal amplitude (high/low)	mm	1.9/0.95
Exciting force (high/low amplitude)	kN	353/245
Drum width	mm	2130
Drum Diemeter	mm	1600
Engine model		Diesel Engine SC8D175.2G2B1
Max. power	kW	128@1800r/min
Engine oil consumption	g/kW.h	205
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	310
