Price:
$120,000-$13,0000 / EA
1 Unit / EA (Min. Order)
Product Description

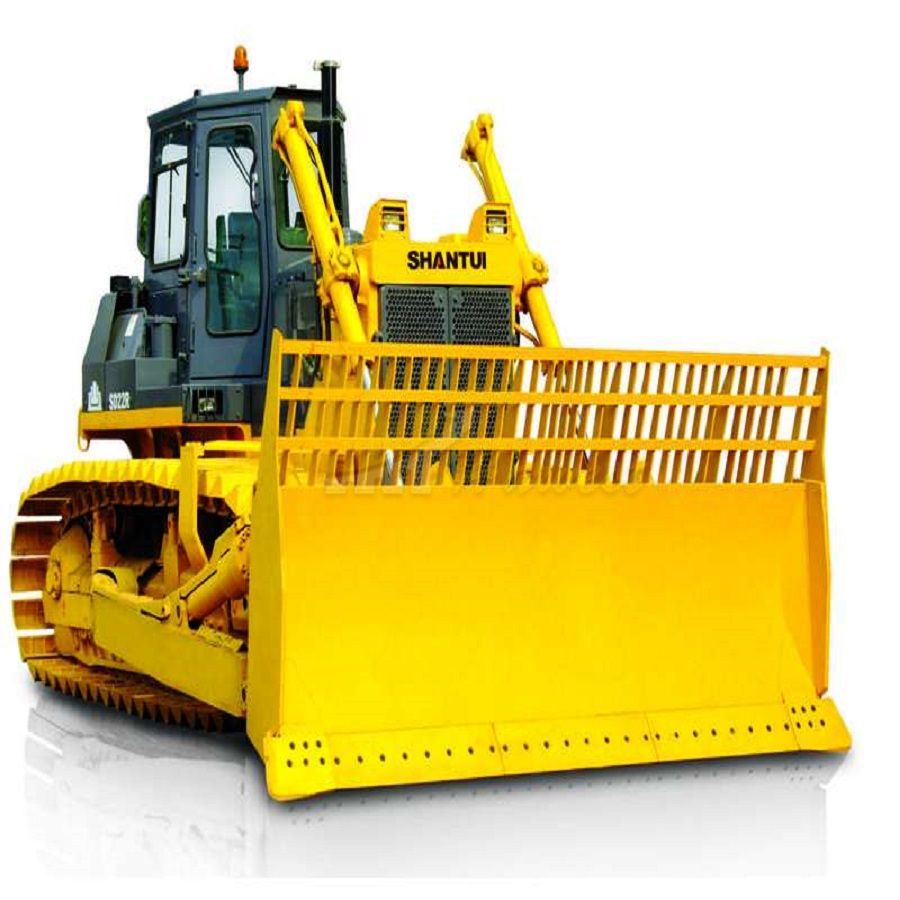

Shantui SD22R Sanitation Bulldozer
King of the Big Landfill
Engine model: Cummins NT855-C280S10
Net power: 162 kW/220HP/1800rpm
Operating weight: 26t
Features
Using a swamp bulldozer track, the SD22R landfill bulldozer is able to reduce ground pressure and has excellent maneuverability, easily adapting it to work in landfills that may contain high-liquid capacities. Optional attachments include a high-positioning warning lamp, a reverse warning alarm, a camera and an LCD screen, which can all greatly improve safety during operation. It’s equipped with a rubbish blade with a large capacity and mud flaps, which can improve working efficiency. The SD22R has central lubrication, central pressure measurement and automatic track tension systems that contribute to convenient and timely observation and maintenance.
Specification
| MODEL | SD22R | ||
| (WASTE) | |||
| PERFORMANCE PARAMETERS | Operatiing Weight (kg) | 26000 | |
| Rated horsepower (kw/hp) | 175/1800 | ||
| Minimum turning radius (mm) | 3800 | ||
| Ground pressure (kpa) | 36 | ||
| ENGINE | Model | Chongqing cummins NT855-C280S10 | |
| Emission | Euro III | ||
| Type | In-line,direct injection,water cooled,4-cycles,turbocharged | ||
| No.of cylinders×Bore×stroke （mm×mm） | 6×140×152 | ||
| Piston displacement (L) | 14 | ||
| Horsepower/rpm （kw/rpm） | 175/1800 | ||
| Maximum torque (N.m/r/min) | 1030/1250 | ||
| DIMENSIONS | Length（mm） | 6225 | |
| Width（mm） | 4365 | ||
| Height（mm） | 3782 | ||
| TRAVELING PERFORMANCE | Forward/Reverse（km/h） | F1：0-3.6 F2:0-6.5 F3:0-11.2 R1:0-4.3 R2:0-7.7 R3:0-13.2 | |
| Gradeability（deg） | 30 | ||
| Clearance（mm） | 405 | ||
| TRANSMISSION | Torque convertor | 3-element, single stage, 1-phase | |
| Gear box | Planetary gear and powershift transmission, hydraulically actuated, forced lubrication | ||
| Main drive | Spiral bevel gear, single-stage speed reduction, splash lubrication | ||
| Steering clutch | Wet multiple disc,coned disc spring loaded, hydraulically actuated, hand operated,interconnected with steering brake | ||
| Brake | Wet, contracting band,foot operated with hydraulic booster | ||
| Final driver | spur gear,double reduction ,splash lubrication | ||
| UNDERCARRIAGE | Suspension | Swing type of sprayed beam,suspended structure of equalizer bar | |
| Track gauge (mm) | 2250 | ||
| Shoe width (mm) | 910 | ||
| Track length on ground (mm) | 3480 | ||
| Number of shoes (each side) | 45 | ||
| Pitch (mm) | 216 | ||
| Carrier rollers (each side) | 2 | ||
| Track rollers (each side) | 8 | ||
| WORKING HYDRAULIC SYSTEM | Pressure (MPa) | 14 | |
| Working pump | Gear pump | ||
| Valve | Multi-way valve | ||
| Bore of blade lift cylinder (mm) | φ120 | ||
| Bore of blade tilt cylinder (mm) | φ200 | ||
| TANK CAPACITY | Fuel tank capacity (L) | 450 | |
| Working hydraulic tank capacity (L) | 110 | ||
| WORKING EQUIPMENT | Blade width (mm) | 4365 | |
| Blade height (mm) | 1885 | ||
| Blade capacity (m³) | 12 | ||
| Max.Drop below ground of blade | 1330 | ||
| Lift height of blade | 550 | ||
| Type of ripper | - | ||
| Maximum digging depth of ripper (mm) | - | ||
| Maximum lifting height of ripper (mm) | - | ||
