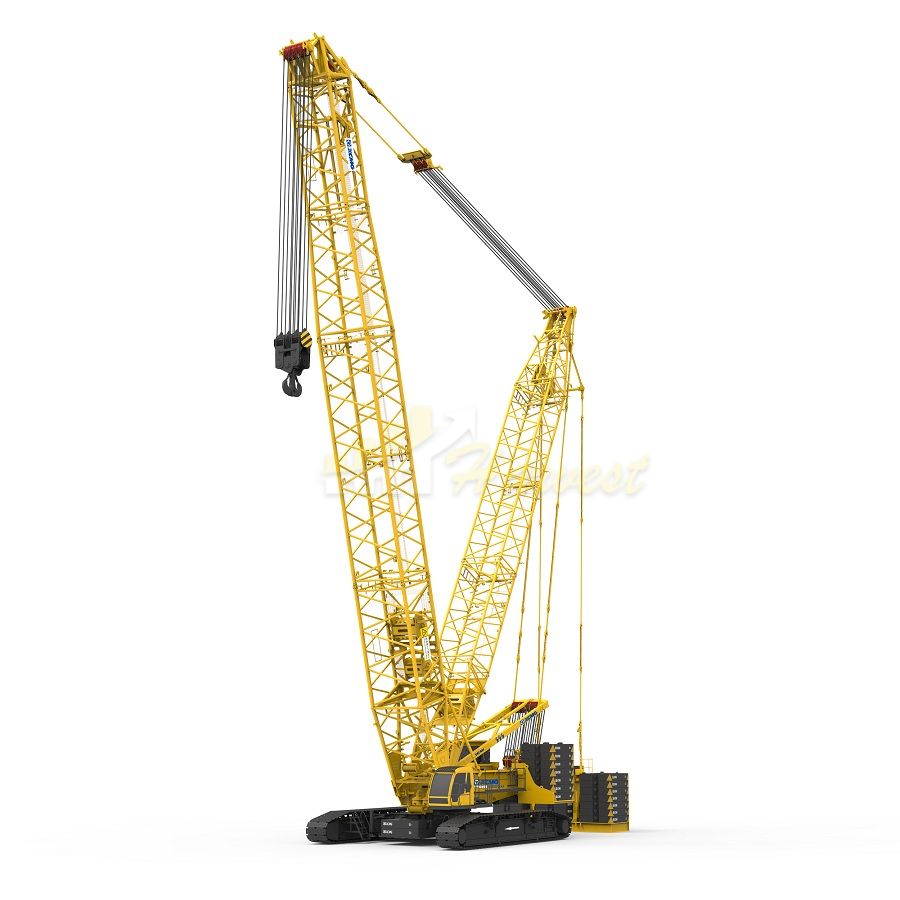

XGC400 crawler crane
XGC400 is a new generation crawler crane which is successfully developed by XCMG on the basis of QUY series product.
The crane of this model has been improved from the aspects of assembly and disassembly convenience, operation comfort and lifting capacity, safer and more reliable.
Equipped with various advanced technologies such as mast one-key erecting and stepless luffing, the crane’s performance is superior to that with other domestic brands in various aspects.
Under the premise of conventional function realization, wind power working condition has been specially developed for XGC400 to meet the installation requirement of 1.5MW~2.0MW wind power equipment.
|Operation performance parameter||*|
|Max. rated lifting capacity for boom||(t)||400|
|Max. rated lifting capacity for fixed jib||(t)||—|
|Max. rated lifting capacity for luffing jib||(t)||185|
|Max. load moment||(t.m)||5157|
|Max. rated lifting capacity for tower jib||(t)||185|
Max. rated lifting capacity for boom single top
|Max. rated lifting capacity for special jib||(t)||116|
|Boom length||(m)||24～96( heavy type)/|
42～126( light type)
|Boom luffing angle||(°)||-3～85|
|Fixed jib length||(m)||—|
|Tower jib length||(m)||24～84|
|Max. dimension of single unit in transport state(L×W×H)||(m)||11.1×3×3.38|
|Fixed jib offset angle||(°)||—|
|Special jib length||(m)||7|
|Max. single line speed for hoist mechanism||(m/min)||130|
|Max. single line speed for boom luffing mechanism||(m/min)||2×51|
|Max. single line speed for jib luffing mechanism||(m/min)||—|
|Max. slewing speed||(r/min)||1.1|
|Max. travel speed||(km/h)||0.9|
|Mean ground pressure||(MPa)||0.146|
|Max. single line speed for tower jib luffing mechanism||(m/min)||100|
|Max. single line speed for superlift luffing||(m/min)||105|
|Overall crane mass||(t)||350(main hook, 24m boom)|
|Max. mass of single unit in transport state||(t)||48|
