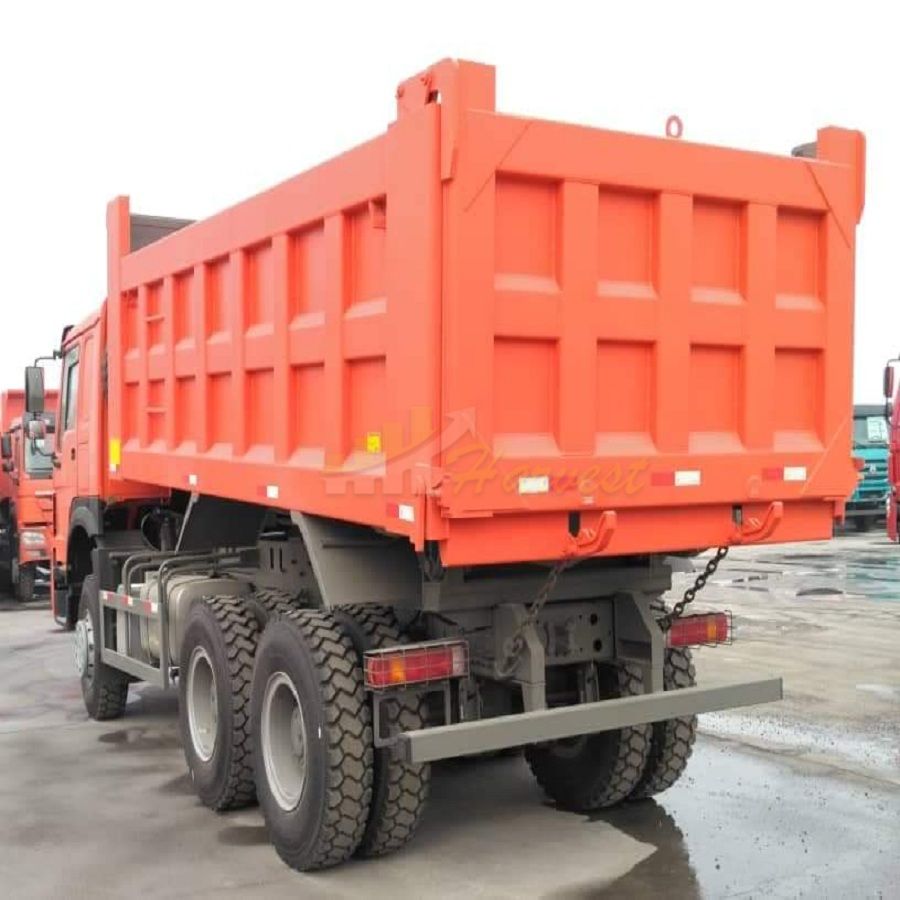

Sinotruk Howo 6x4 18m3 Dump Truck


$30,000-$35,000 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 7-10 Days

Shipping: ContainerFlat RackRoro

Product Description

Sinotruk Howo 6x4 18m3 Dump Truck

SINOTRUK HOWO 336hp 6X4 10 wheel 18 cubic meters dump truck, sinotruk 371hp 10 wheeler 30 tons 20 cubic meters tipper, SINOTRUK howo 8X4 12 wheeler 40 tons 28cbm, 30cbm, 33cbm & 36cbm dumper.

According to clients' requirements, we can customize different  loading capacity, dump box, color & put logo of customers' company.

Min. Order: 1 unit

Payment: 30% depsoit  and balance before shipping

Delivery: within 20 working days

Shipping: by bulk vessel or roro

Warranty: 1 year or 60,000 kilometers, whichever comes first from the date in Bill of Lading.


SINOTRUK 30 tons 20m3 371HP 6X4 10 Wheelers HOWO Tipper/Dumper/Dump Truck for Mining


ManufactureMade in 2019 yearCNHTC, China
BodyCarriage Internal Dimensions(mm)5600x2300x1500

Size (m3)20m3 16-21m3 for option )

Steel thickness of Carriage(mm)Floor: 8mm/Side: 6mm


Hydraulic Lift of CarriageMiddle Lift ( HYVA cylinder or front lift for option )
Weight in kgKerb weight (Kg)12770

Loading capacity (Kg) 30000



Wheel base (mm)3800+1350
PerformanceMaximum driving speed (km/h)  75

Fuel consumption  (1/100 km)35
ModelSINOTRUK HW76 Lengthen cab

single bunk, new type seat, adjustable steering wheel, EURO new type heating & ventilating system, Germany VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, left driving, air conditioner
EngineModelCNHTC WD615.69(Euro II)

Type6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Horsepower336hp ( 371hp ,420hp for option )

Maximum output Kw/r/min247/2200

Maximum torque N.m/r/min1350/1300-1600

Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan
TransmissionSINOTRUK HW19710 transmission , 10 forward and 2 reverse

I       II       III    IV      V     VI     VII     VIII     IX     X

14.28  10.62   7.87  5.88   4.38   3.27   2.43    1.80    1.34    1

R1-13.91      R2-3.18
ClutchSINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
SteeringZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving), ( ZF8098 RHD right hand drive for option )
Front AxleSINOTRUK HF9 Front Axle,new 9-ton front axle of equipped with drum brakes.
Rear AxlesSINOTRUK HC16 Heavy reduction drive axle, STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio: 5.73;
Brake SystemService brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Wheels & TyresRims: 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.( tubeless for option )
Oil TankSquare type-300L Aluminum alloy fuel tank
