Section and special function introduction
1. Oil tank truck: Widely use to transfer acid liquid, alkali liquidal and salt liquid medium etc.
2. Which have and character of transport causticity and hazardous medium.
3. We always use carbon steel, plastic-lined steel, stainless steel to make the tank.
4. Oil, fuel tank truck composed of special chasis, special tank and special chemical or oil pump, etc.
5. Tank sharp: Roundness, oval and round aquare tank are available.
6. Function: The tank can be divided into several sections to load different chemicals and liquid food. There are several plastic isolating board in the tank to prevent its safety. The tank passed the high pressure and leak test. High strength, high stability make it more safe. 7. It can divided into several that disposal kinds of oil, chemicals and drinking water base on customers request. 8. The medium inclouding: Light fuel, heavy oil, chemical medium, etc.

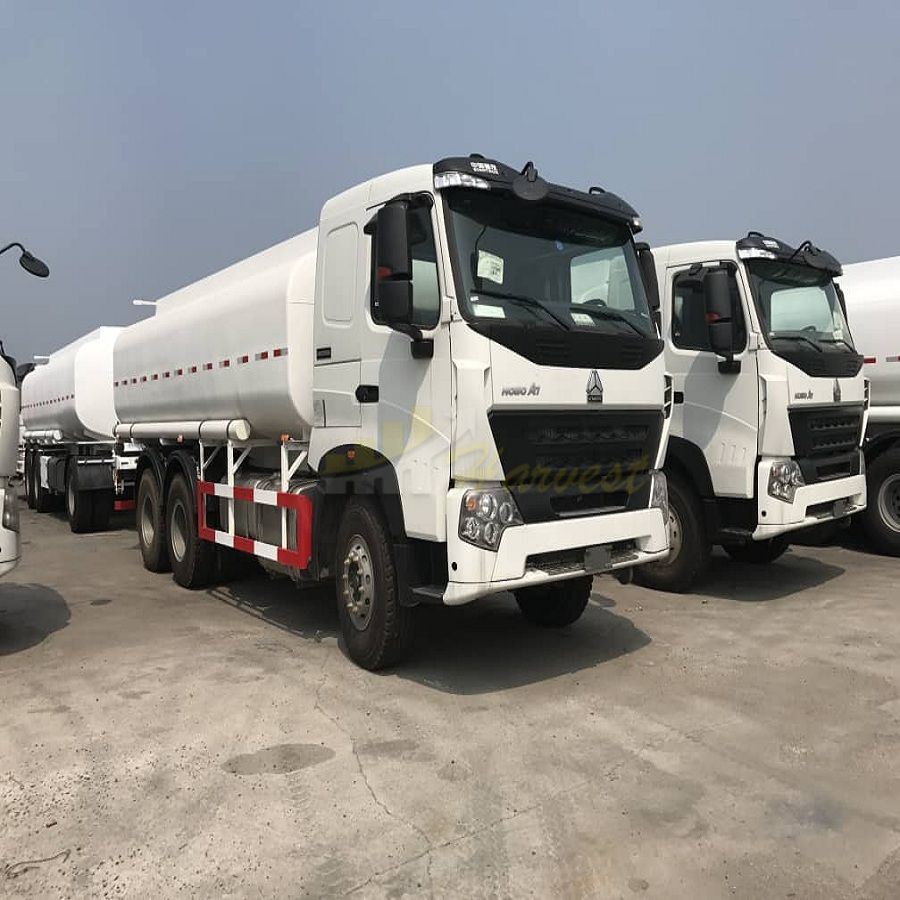

Fuel truck, 21,000 liters
Fuel tanker, CNHTC engine, 371hp
Oil tank truck, SINOTRUK chassis
Oil tanker, with a pump, two manholes, two oil pipes, two fire extinguishers
21CBM fuel tank truck
Transport oil, fuel, diesel, gasoline, crude oil, etc
CNHTC engine, 6x4 left hand drive
Tank volume: 21m3
|Tank||Tank volume: 21m³ |
head 5mm, body 5mm, material Q235
bottom valve: pneumatic control
|Weight in kg||Kerb weight (Kg)||10870|
|Gross vehicle weight (Kg)||25000|
|Wheel base (mm)||4300+1400|
|Performance||Maximum driving speed (km/h)||92|
|Fuel consumption (1/100 km)||35|
|Cab||Model||SINOTRUK A7-W Lengthen cab|
|single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner|
|Engine||Model &hp||WD615.47, 371hp, Euro 2|
|Type||6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled,high pressure common rail.|
|Maximum output Kw/r/min||273/2200|
|Transmission||SINOTRUK HW19710 transmission ,10 forward and 2 reverse|
|I II III IV V VI VII VIII IX X|
|14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1|
|Clutch||SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance|
|Steering||ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)|
|Front Axle||SINOTRUK HF7 Front Axle,1x7-ton front axles of equipped with drum brakes.|
|Rear Axles||SINOTRUK ST16 Heavy reduction drive axle 16Ton,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.|
|Brake System||Service brake:dual circuit compressed air brake|
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
|Tire||12.00R20, 10+1 spare tire|
|Electrics||Operating voltage:24V,negative grounded|
Batteries:2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light.
|Oil Tank||Square type-400L Aluminum alloy fuel tank|
