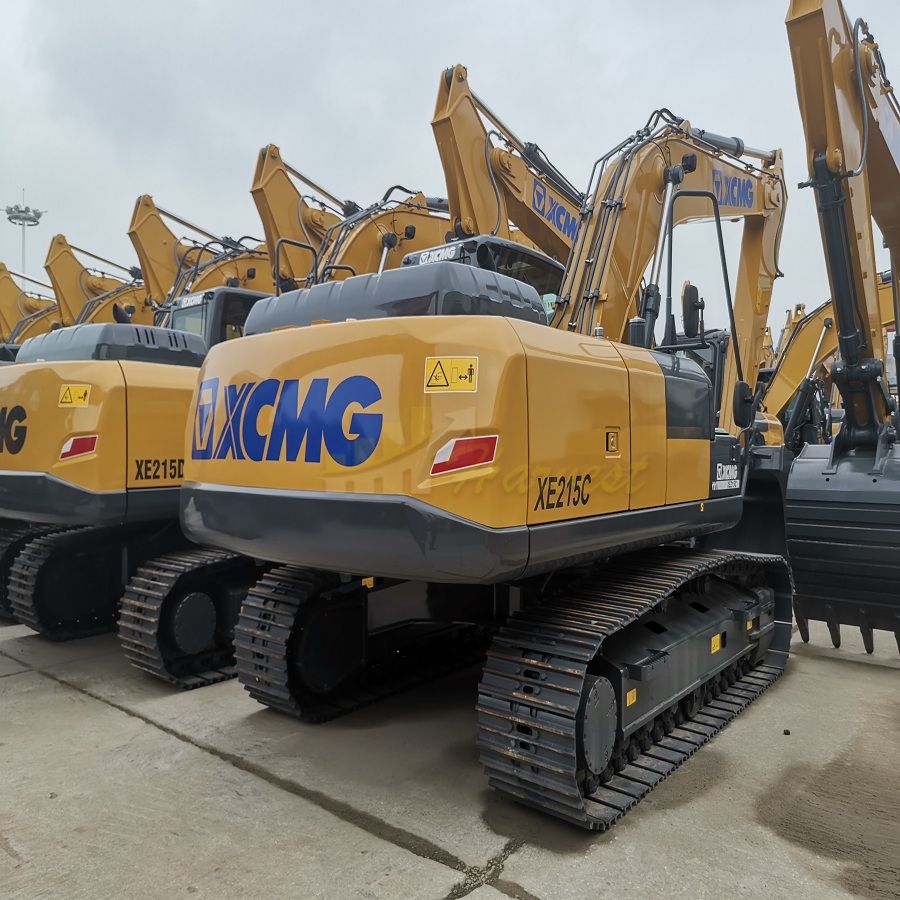

Xcmg 21 Ton XE215C Crawler Excavator Isuzu Engine 1m3 Bucket
1. High-end configuration·Excellent performance
XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on, it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.
2. New generation·Environmental·Energy-saving·Large power engine
New generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced, and fuel consumption is reduced by 10% or less compared to previous generation of machine.
With independently developed intelligent study-type control system in XE215C series, it can be matched efficiently and reasonably so that the resistance of hydraulic oil return system is greatly decreased, working efficiency reaches above 15% (compared with old model XE215C), which has the highest earthwork efficiency among similar models.
3. High quality·Enjoyable driving
(1) Driver's cab
Brand new injection molding drive’s cab, advanced ergonomic design and sufficient provide the best working environment for operators.
(2) Precautions against vibration
Double glazing glass and liquid seal shock rubber are standard so that the noise is reduced to minimum (reduced by 6DB) and the fatigue of driver is effectively relieved.
The air volume of new sir-conditioning system is increased by 23%, which brings better heating and cooling effect and more comfortable operation.
4. Firm and efficient·Durable
(1) Structural parts
With finite element analysis for structural parts and application of enhanced working devices, the reliability, durability, multi-mode adaptability are greatly improved. It has the bucket with largest capacity among the same type of models so that the efficiency of whole machine is greatly improved, meanwhile overall quality distribution is optimized with excellent stability.
(2) Carrier ang frame
The new butter pool structure strongly ensures lubrication environment of slewing mechanism so that its service life is greatly extended; oversize slewing bearing and carrier system bring the whole machine stronger adaptability in mine conditions and longer service life.
5. Convenient maintenance and service
Daily maintenance and repair points are at your fingertips, no matter fuel filter or oil filter, they all can be maintained directly standing on the ground, with easy operation, efficient maintenance operations can be realized effectively.
The adoption of advanced concepts such as unified design platform, it can quickly and easily switch multiple machines and tools to broaden application field of the machine.
|Equipped||Electronic fuel injectionFour strokesWater coolingTurbo-chargingAir to air intercooler|
|No. of cylinders||6|
|Output power||128.5/2100 kW/rpm|
|Operation Weight||21900 kg|
|Bucket Capacity||0.9—1.0 m ³|
|Main performance||Travel speed(H/L)||5.5/3.3 km/h|
|Rotating speed||13.3 r/min|
|Ground pressure||47.2 kPa|
|Bucket digging force||149 kN|
|Arm digging force||111 kN|
|Maximum traction||184 kN|
|Hydraulic system||Main pump||2 plunger pumps|
|Rated flow of main pump||2×209 L/min|
|Pressure of prime valve||34.3/37.0 Mpa|
|Pressure of travel system||34.3 Mpa|
|Pressure of swing system||28 Mpa|
|Pressure of pilot system||3.9 Mpa|
|Oil capacity||Fuel tank capacity||400 L|
|Hydraulic tank capacity||220 L|
|Engine oil capacity||25 L|
|Appearance size||Overall dimensions(L*W*H)||9625×2990×3100 mm|
|Width of platform||2830 mm|
|Length of crawler||4225 mm|
|Overall width of chassis||2990 mm|
|Width of chassis||600 mm|
|Track length on ground||3462 mm|
|Crawler gauge||2390 mm|
|Clearance under counterweight||1050 mm|
|Min. ground clearance||485 mm|
|Min. tail swing radius||2890 mm|
|Working scope||Max. digging height||9620 mm|
|Max. dumping height||6780 mm|
|Max. digging depth||6680 mm|
|Excavation depth of 8 feet level||6500 mm|
|Max. vertical wall digging depth||5715 mm|
|Max. digging reach||9940 mm|
|Min. swing radius||3530 mm|
|Standard||Boom length||1680 mm|
|Arm length||2910 mm|
|Bucket Capacity||1.0 m ³|
|Optional||Arm length||5680 mm|
|Bucket Capacity||1.0 Earth working bucket0.9 Rock bucket|
