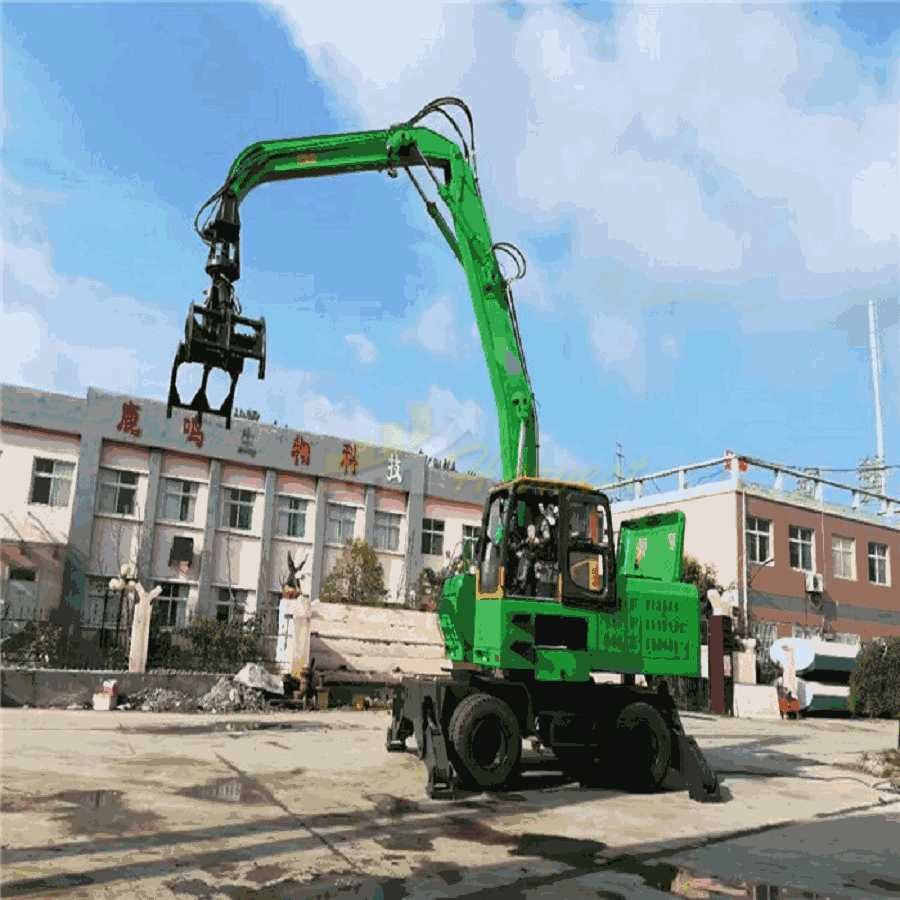

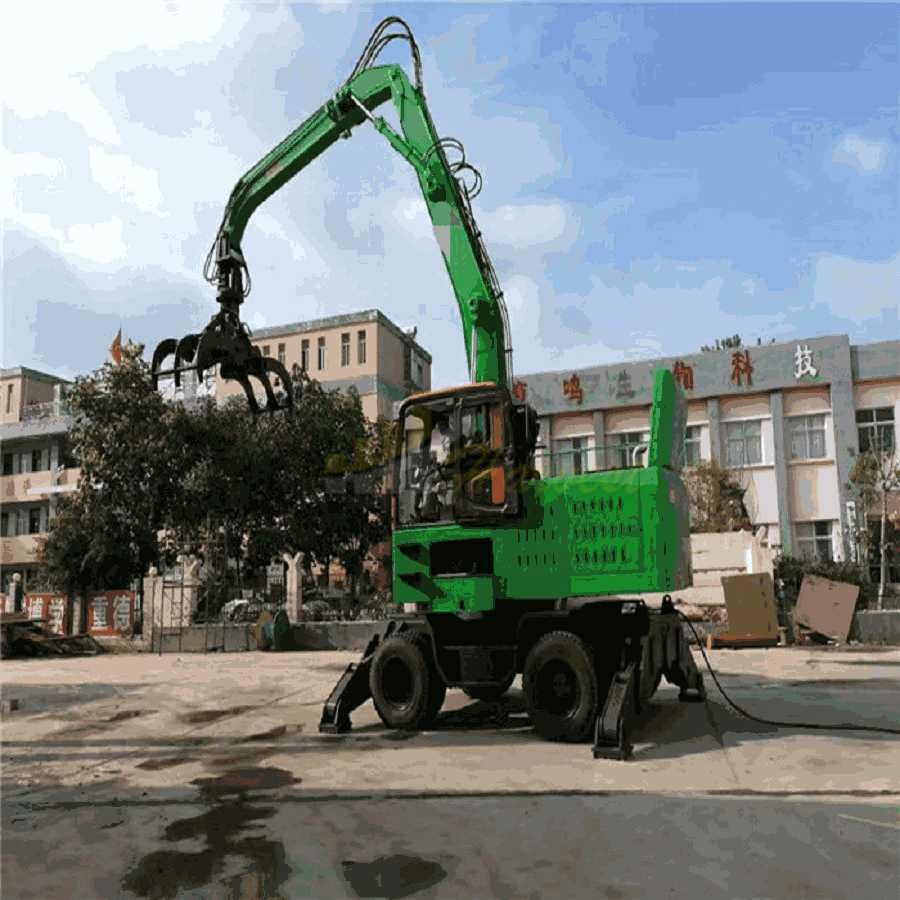

26 Ton Log Grapple Excavator YGL260

Price:

Negotiable / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 20-25 Days

Shipping: ContainerFlat RackRoro

Product Description

26 Ton Log Grapple Excavator YGL260

YGL series of hydraulic wheeled log grabbers are developed on the basis of excavators and have special equipment for log handling.
Application Site

Log Yards

Excellent stability, even while moving, to load, sort and stack both tree length and CTL wood
Fast, powerful duty cycles to feed debarking, engineered wood and pole processing equipment
Nimble, cost effective pick & carry machines

Milling

High mobility to stack and move material for infeed for sawmills
Loader cranes provide high volume loading of chips to infeed at pulp mills
Precise feed to chipping and grinding equipment
Safely and quickly clear jams from conveyors and feed decks

Biomass

Efficient infeed of logs and bulk materials for chippers and grinders
Sort material and load conveyors for energy production

YGL260 has a "double force" system for internal combustion engine and  electric interchange operation; "double force" system with explosion-proof machine and electric interchangeable operation; "double force" system with optional explosion-proof machine and electric interchange operation; The use of explosion-proof machine, electric interchangeable "double force" system; optional explosion-proof machine, fully enclosed electrical, fire protection and save 60% energy consumption compared to internal combustion engine operations; can quickly replace different hydraulic grabs.

The electric operation has over-current and heat-discharge protection devices;
Phase sequence automatic identification to prevent oil pump reversal device;
Hydraulic system power failure, oil self-locking protection device;
There are a number of complex movements during the operation to improve efficiency;
The hydraulic system is equipped with an air-cooled radiator;
The gripper can automatically turn and reversing 360 degrees;
When the electric control room is electrically operated, there is a dual-purpose air conditioning unit;
Lifting cabin for option.



26 Ton Log Grapple Excavator YGL26026 Ton Log Grapple Excavator YGL260

Specification

Item                                             Unit                                       Parameter
Operating Weightkg24000
Engine Powerkw112-118
Main Pump/DOOSAN
Rated FlowL/min2X146+26+20
Working PressureMpa31.5
Main Valve/DONGZHI
Swing Motor/SUNJIN
Travel Motor/Shanghai Yufeng
Swing Speedrpm9.5
Maximum TractionKn260
Travel Speedkm/h5
Gradeability.25
Overall Dimensionmm6300
Stick Lengthmm4200
Bucket Capacitym31.0
