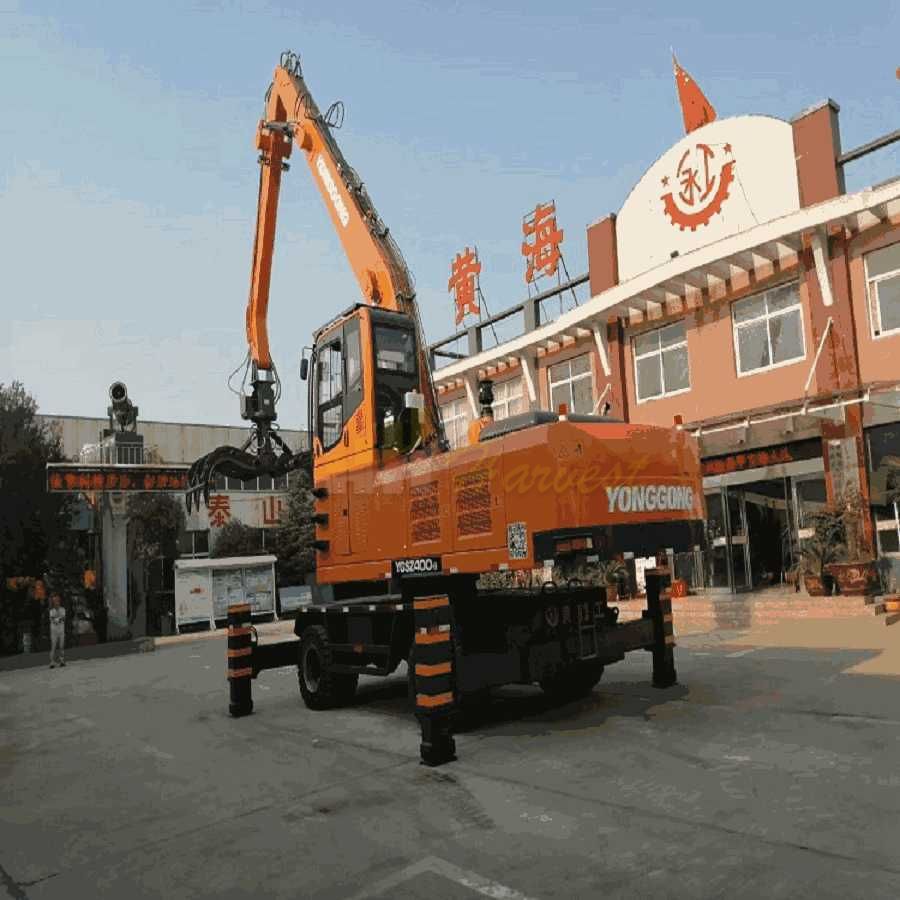

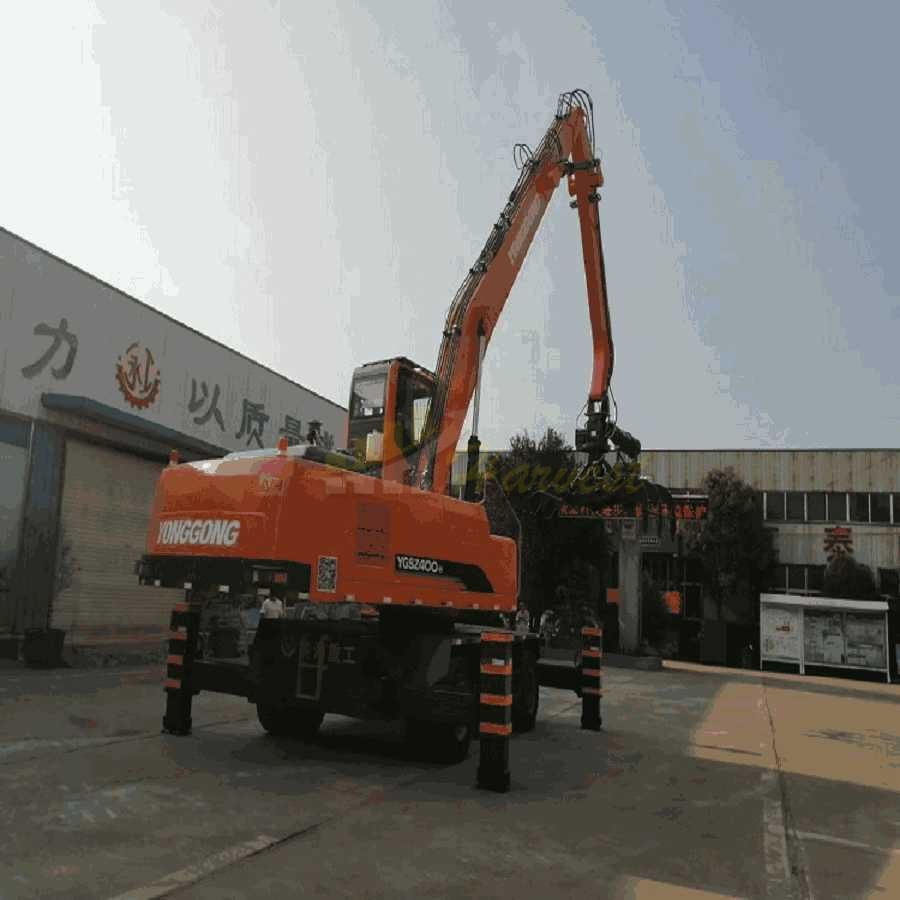

40 Ton Hydraulic Wheel Excavator with Grapple/Log Grab


Negotiable / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 20-25 Days

Shipping: ContainerFlat RackRoro

Product Description

40 Ton Hydraulic Wheel Excavator with Grapple/Log Grab

YGL series of hydraulic wheeled log grabbers are developed on the basis of excavators and have special equipment for log handling.

● Economical and reliable

Single pump constant power, dual pump cross power control, stable engine output; Negative flow pump control mode, good economy; Hydraulic oil radiator and engine water cooler plug-in arrangement, compact and efficient; Hydraulic hoses and seals are imported with high reliability.

● Reasonable design

Both the boom and the stick are hydraulically locked and have good impact resistance. Both pumps converge, the stick regenerates, and can be combined with multiple movements to ensure stable operation. Two speed selections for walking speed to achieve two speeds to meet different working conditions; The upper arm brake of the walking and turning mechanism is hydraulically opened and has good safety; Flexible configuration according to different grade requirements of users; Power system, hydraulic system and working device can be freely and flexibly configured according to users' need; The working device adopts a "straight-moving arm and a bucket stick" structure, and is equipped with an electric suction cup and a lifting driving cab;

● Efficient and environmentally friendly

Simple operation, convenient maintenance and safe and reliable performance; Environmental protection and energy saving, low noise and long service life; The far-infrared remote control system can realize long-distance operation; the crawler-type walking device has low ground pressure, stable walking and flexible steering.

Application site

Log Yards

Excellent stability, even while moving, to load, sort and stack both tree length and CTL wood
Fast, powerful duty cycles to feed debarking, engineered wood and pole processing equipment
Nimble, cost effective pick & carry machines


High mobility to stack and move material for infeed for sawmills
Loader cranes provide high volume loading of chips to infeed at pulp mills
Precise feed to chipping and grinding equipment
Safely and quickly clear jams from conveyors and feed decks


Efficient infeed of logs and bulk materials for chippers and grinders
Sort material and load conveyors for energy production


40 Ton Hydraulic Wheel Excavator with Grapple/Log Grab


Item                                             Unit                                       Parameter
Operating Weightkg39800
Engine Powerkw110
Electric Motorkw200
Rated FlowL/min2X120+30
Working PressureMpa31.5
Main Valve/PARKER
Swing Motor/SUNJIN
Travel Motor/Shanghai Qidong
Swing Speedrpm0-12
Maximum TractionKn260
Travel Speedkm/h0-23
Overall Dimensionmm6000
Stick Lengthmm3500
Bucket Capacitym31.0
