Nov. 18, 2019
As a DUMP TRUCK Manufacturer China, there are some information to share with you.

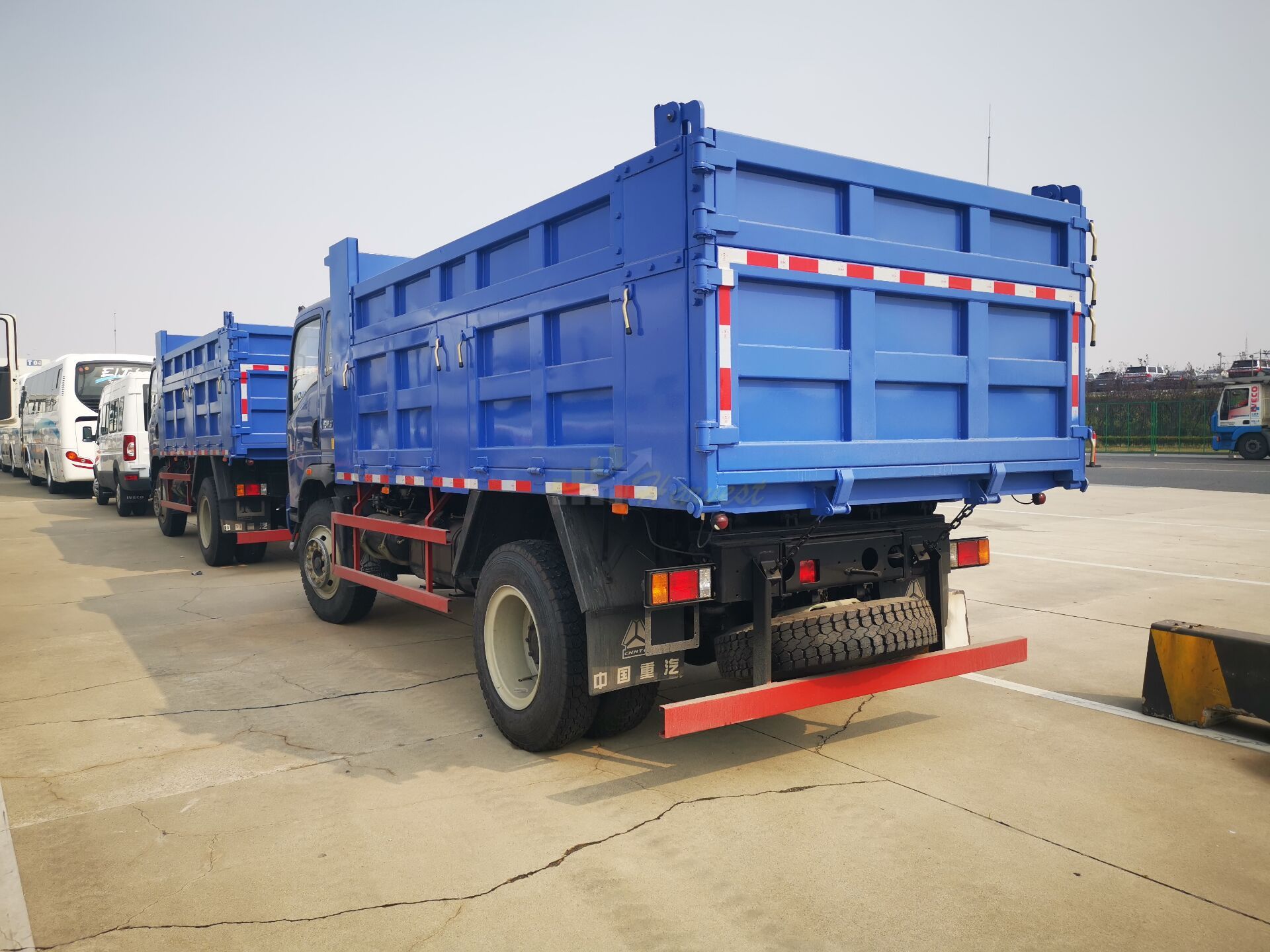

2 units 4x2 tipper truck 130hp sinotruk homan dump truck(Sinotruk Dump Truck) export to Congo Africa
Specification as follows:
Cabin:2080 mm Extended cabin, with 2 seats and 1 bed, with A/C
Driving type: 4x2 LHD
Dimensions (L x W x H): 6400×2400×2730mm
Wheel base: 3650mm
Payload: 10 ton
Engine: YUCHAI YC4D130-33, Euro 3
Horse power: 130hp
Gearbox: WLY653H, 6 Forwards & 1 Reverse
Steering: power steering
Tire: 9.00R20, 7pcs including 1 spare tire
Brakes service brake: dual circuit compressed air brake
Auxiliary brake: Exhaust brake, Clutch booster
Dump Box(L x W x H):4200*2200*(800+400)mm
bottom 5mm, side 3mm.
With five doors.
Hydraulic system: Middle tipping
