HOWO 4x2 Refrigerator Truck/ Refrigerator Cooling Van

Price:

$15,000-$18,000 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 25-30 Days

Shipping: Container Flat Rack Roro

Inquire Now Next Product

Product Description

Refrigerator truck is the van truck equipped with refrigerator device which used for transporting the fresh and frozen goods, vegetables and fruits, milk goods and also vaccines, with which inside temperature could be optional of -5°, 10°, -16°, -18°.

The surface of van body could be made of fiberglass, aluminum or stainless steel.

The padding material with varieties of thickness is polyurethane foam that could preserve the temperature.

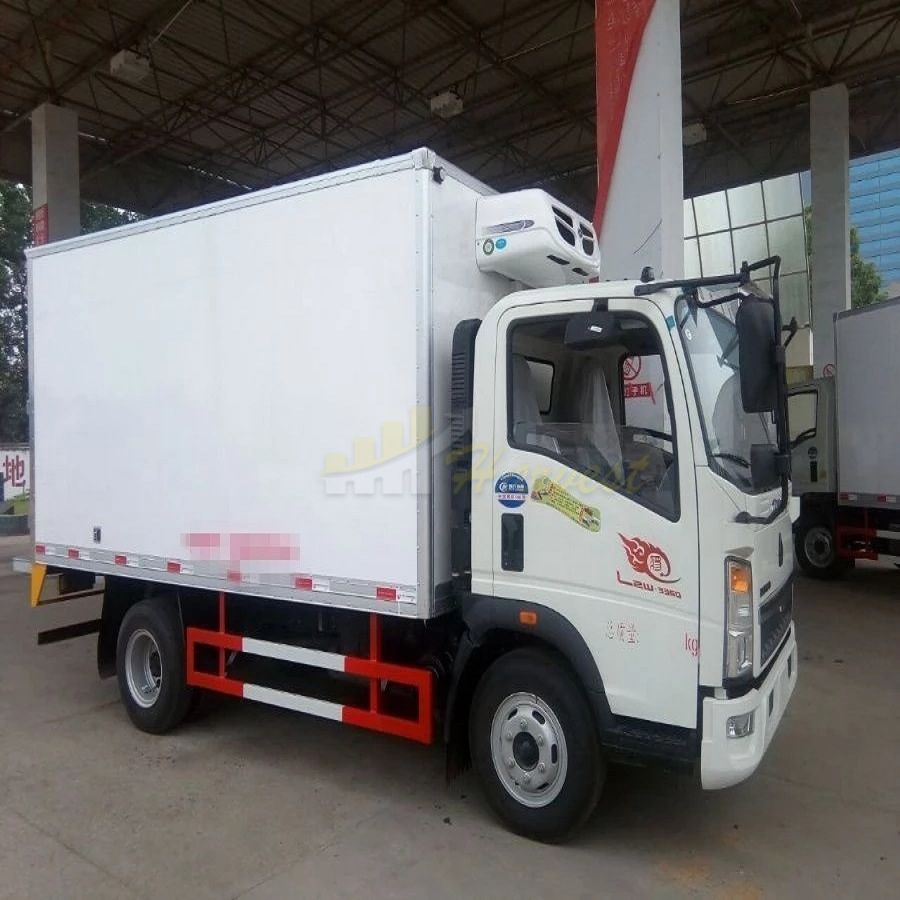

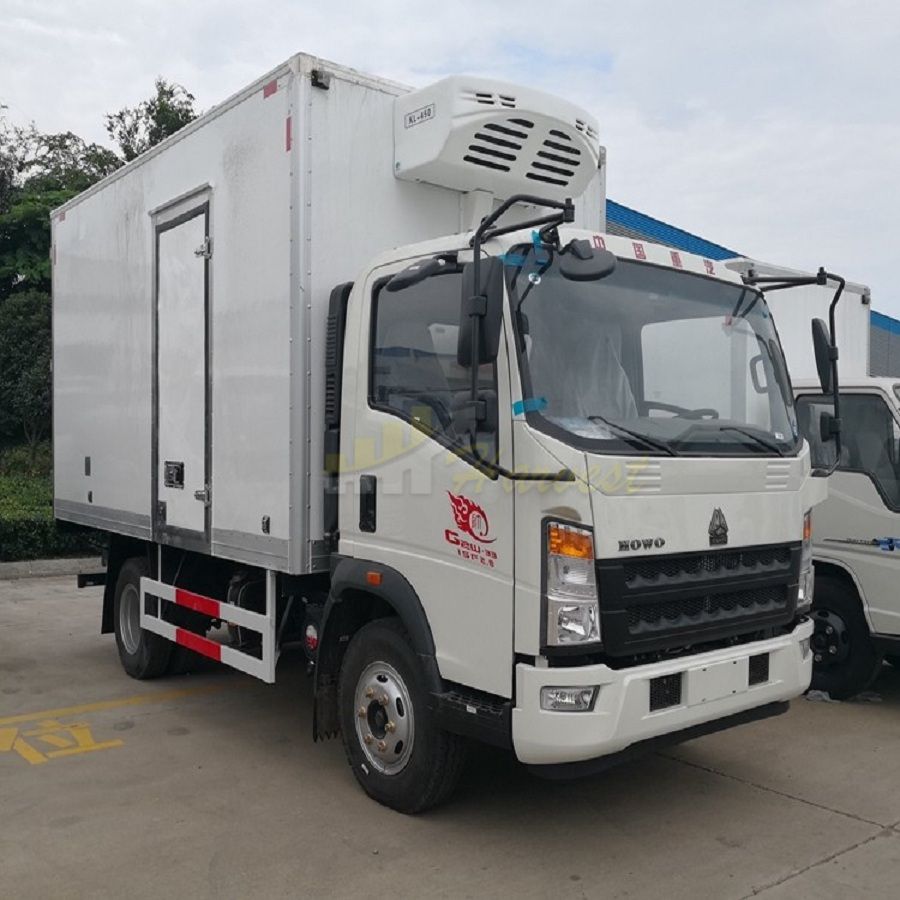

HOWO 4x2 Refrigerator Truck/ Refrigerator Cooling Van

Specification

Chassis Model	ZZ1047D3414C145
Driving Type	4x2
Cabin	2080, two seats and A/C
Engine	YN4102QBZL
Transmission	WLY6T46(112), 6F & 2R with PTO
Front Axle	2.4 ton
Rear Axle	4..2 ton, ratio 5.735
Suspension	11/9+7CH
Tyres	7.00R16 with 1spare tyre
Cargo Body Size	4050x1900x1800mm
	thickness: upper & bottom 105mm, side 85mm
	material: fiberglass
	Insulation layer: polyurethane foam
Fuel Tank	120L
Refrigerator	Thermo King RV-380
Temperature	-18°
Standard configuration	Cooling system and rear door
Optional configuration	1. Box material: Aluminum alloy or Stainless steel. 2. Cooling system:China brand or Imported brand. 3. Side door , shelves, slide rail , meat hook and floor vent could be added. 4. Temperature alarm equipment.
