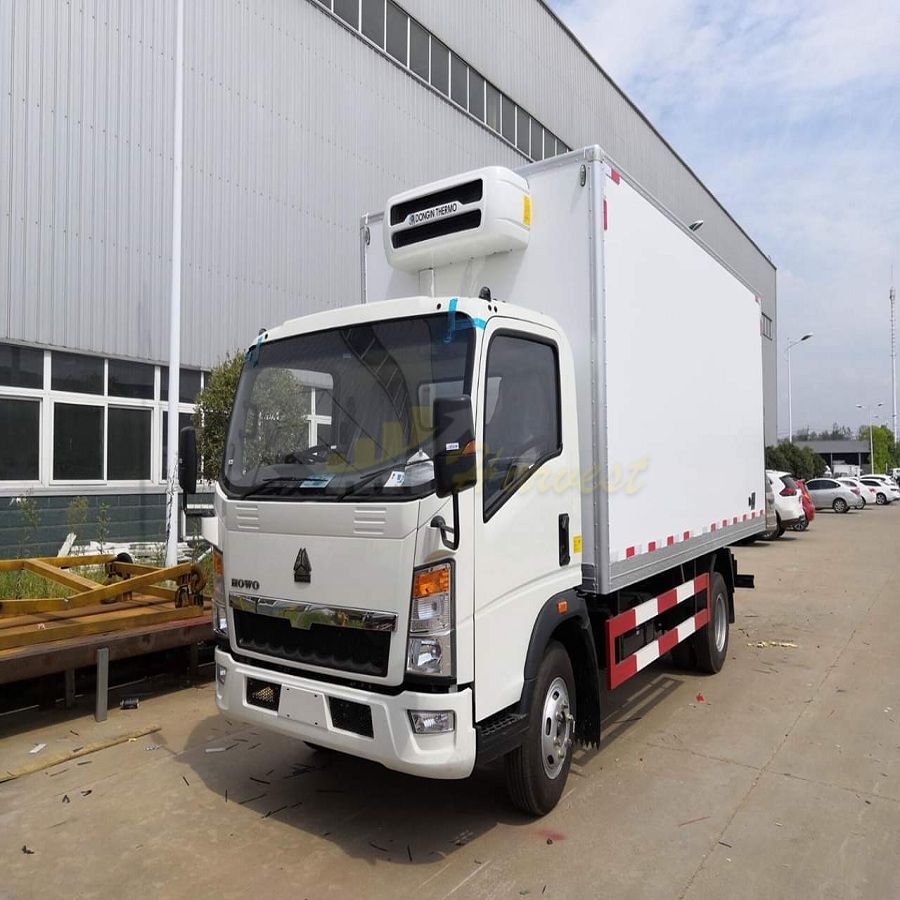

Howo Small Refrigerator Truck for Meat and Fish

Price:

$13,000-$18,000 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 20-25 Days

Shipping: ContainerFlat RackRoro

Product Description

Refrigerator truck is the van truck equipped with refrigerator device which used for transporting the fresh and frozen goods, vegetables and fruits, milk goods and also vaccines, with which inside temperature could be optional of -5°, 10°, -16°, -18°.

The surface of van body could be made of fiberglass, aluminum or stainless steel.

The padding material with varieties of thickness is polyurethane foam that could preserve the temperature.




Howo Small Refrigerator Truck for Meat and FishHowo Small Refrigerator Truck for Meat and FishHowo Small Refrigerator Truck for Meat and Fish

Specification

 Cabin Driving type 4x2 LHD/RHD

1880 Cabin, bed, AC, wind deflector, power window, central lock is optional
Overall Dimensions5995×2150×2450 mm
Wheel Base3360 mm
GVW4495kg
Front Axle2.4 ton
Rear Axle4.2 ton
Engine BrandYUNNEI

Model4100

Type4-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Displacement3.76L

Horse Power (HP)110

Emission standardEuro II / other standard engine is optional
Max Speed 90 km/h
Tire 7.00R16
TransmissionWLY6T100
Oil Tank120L
Cargo Dimensions3850x2050x400 mm
Brake SystemService brake:dual circuit compressed air brake

Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

Auxiliary brake:engine exhaust valve brake
ElectricsOperating voltage:24V,negative grounded

horn,headlamps,fog lights,brake lights,indicators and reverse light
Refrigerating System1. Box Size: 3850mm*2050mm*2050 mm,
2. Box Material, glass epoxy in the surface, foam in the middle , side ,top ,front ,rear thickness 95mm;bottom 102 mm.
3. Working temperature is minus 18 celsius degree. America Thermo King cooling system with backup power supply.
4. Rear door open
