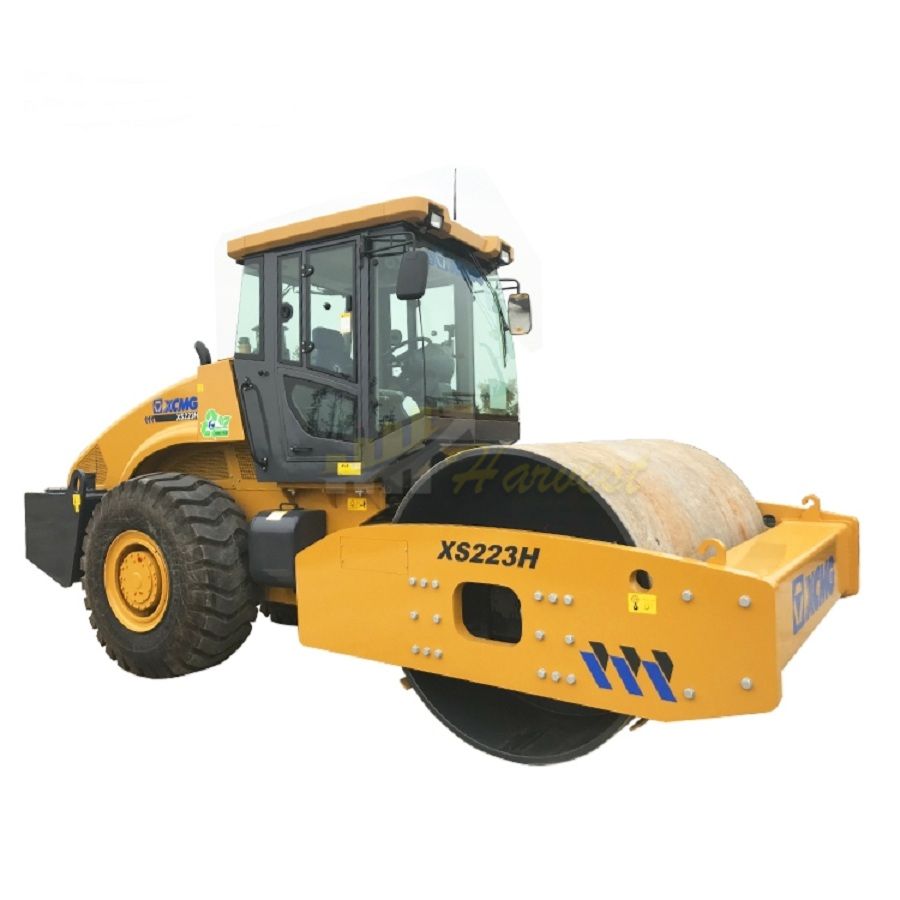

22ton Single Drum XS223H Vibration Compactor Road Roller

Price:

$50,000-$80,000 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 20-25 Days

Shipping: Container Flat Rack Roro

Inquire Now Next Product

Product Description

22ton Single Drum XS223H Vibration Compactor Road Roller

The XS223H fully hydraulic single-drive vibratory roller is more comfortable to operate, with superior compaction performance and efficiency, and four-stage braking is more safe and reliable.

It is suitable for compaction operations such as concrete, stabilized soil, pebbles, sandy soil, and sticky soil.

It is an ideal compaction device for the construction of high-grade highways, airports, ports, and embankments.


22ton Single Drum XS223H Vibration Compactor Road Roller

Specification

Item		Unit	Parameter
Work weight		kg	22000
Drive wheel distribution weight		kg	11000
Vibratory drum distribution weight		kg	11000
Static line load		N/cm	516
Vibration frequency		Hz	28/33
Theoretical amplitude		mm	1.86/0.93
Exciting force		kN	374/290
Speed range	Ⅰ	km/h	0-4.5
	Ⅱ	km/h	0-7.3
Wheelbase		mm	3180
Compaction width		mm	2130
Theoretical climbing ability		%	44%
Minimum turning radius		mm	6500
Vibratory drum diameter		mm	1600
Minimum ground clearance		mm	440
Engine	model		SC8DK200G3
	Rated speed	r/min	2200
	Rated power	kW	147
Dimension		mm	6220×2430×3200
Vibration system pressure		MPa	35
Steering system pressure		MPa	38
Drive system pressure		MPa	16
