HOWO 5000 Gallon Water Tanker Truck

Price:

$38,000-$39,800 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 25-30 Days

Shipping: Container Flat Rack Roro

Inquire Now Next Product

Product Description

Water Tank Truck is mainly used for raod flushing, spraying and guardrail cleaning as well as functions of carrying and draining off water and emergency firefighting etc.

It can be divided into 2 types: water tanker & water sprinkler/water bowser.

Water Sprinkler is equipped with front high-pressure nozzle under bumper, rear sprinkler at the rear of vehicle, and working platform.

The water cannon which is installed on the working platform can rotate by 360 degree, and the water flow can be adjusted into various rain shape.

We can make different capacity tankers according to customers demand.

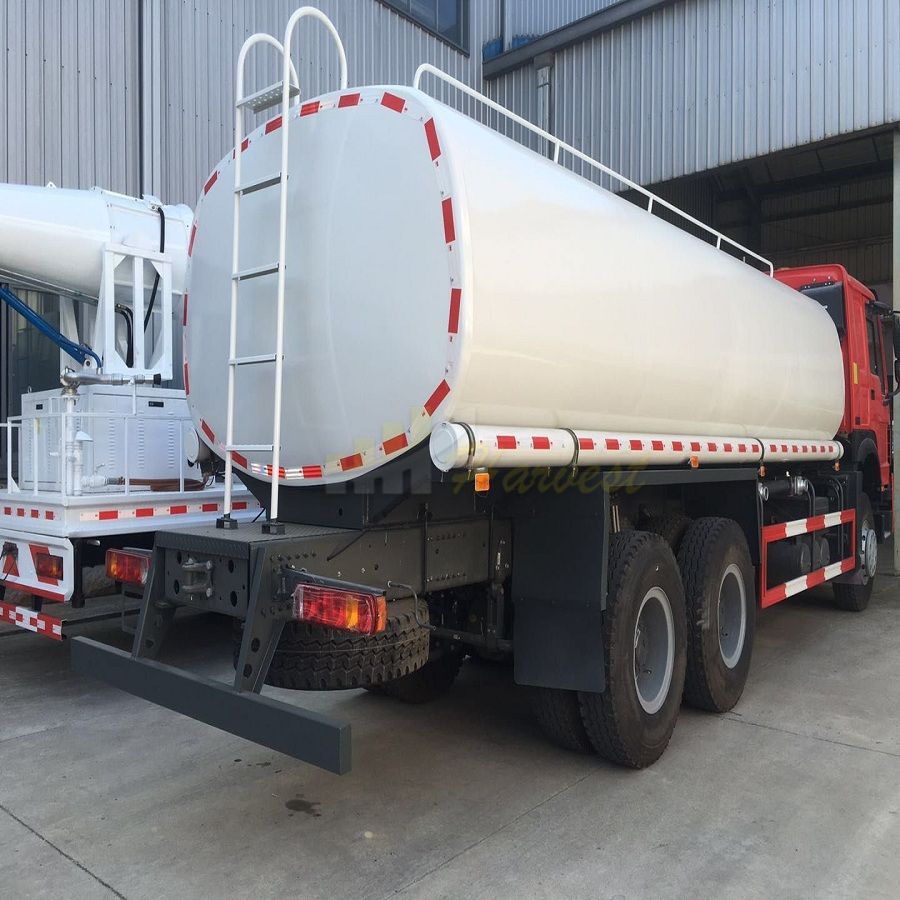

HOWO 5000 Gallon Water Tanker Truck

Specification

Chassis Model: ZZ1257N4341W
Weight	Kerb weight (Kg)	11110
Weight	Gross vehicle weight(Kg)	25000
Dimension	Length(mm)	9800
	Width(mm)	2496
	Height(mm)	3718
	Wheel base (mm)	4300+1350
Performance	Maximum driving speed (km/h)	92
Performance	Fuel consumption(1/100km)	35
Cabin	Model	SINOTRUK HW76 Lengthen cab
	HW76 Long cab, with two seats and one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, A/C and high dumper.
Engine	Model	WD615.69(Euro II)
	Type	Diesel Engine, 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Horsepower	336hp
	Max.output Kw/r/min	247/2200
	Max. torque N.m/r/min	1350/1100-1600
	Bore x Stroke	126x130mm
	Displacement	9.726L
Transmission	SINOTRUK HW19710 transmission ,10 forward and 2 reverse
	I II III IV V VI VII VIII IX X
	14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1
	R1-13.91 R2-3.18
Clutch	SINOTRUK Φ430 diaphragm-spring clutch, hydraulically operating with air assistance
Steering	ZF8118 (left hand driving) hydraulic steering with power assistance.
Front Axle	SINOTRUK HF7 Front Axle, new 7-ton front axles of equipped with drum brakes.
Rear Axles	SINOTRUK ST16 (2x16 ton loading capacity)Pressed axle housing, central double reduction with differential locks between wheels and axles .
Brake System	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
Tires	Triangle brand 12.00R20 radial tire with 1 spare tire ( total 11pcs)
Electrics	Operating voltage: 24V, negative grounded Batteries: 2x12V, 165Ah, horn, headlamps, fog lights, brake lights, indicators and reverse light.
Fuel Tank	Square type-400L Aluminum alloy fuel tank
Tanker Capacity	20,000 Liters
