Sinotruk HOWO 10 Wheeler 380HP Dump Truck Tipper Truck

Price:

$38000-$39900 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 7-10 Days

Shipping: ContainerFlat RackRoro

Product Description

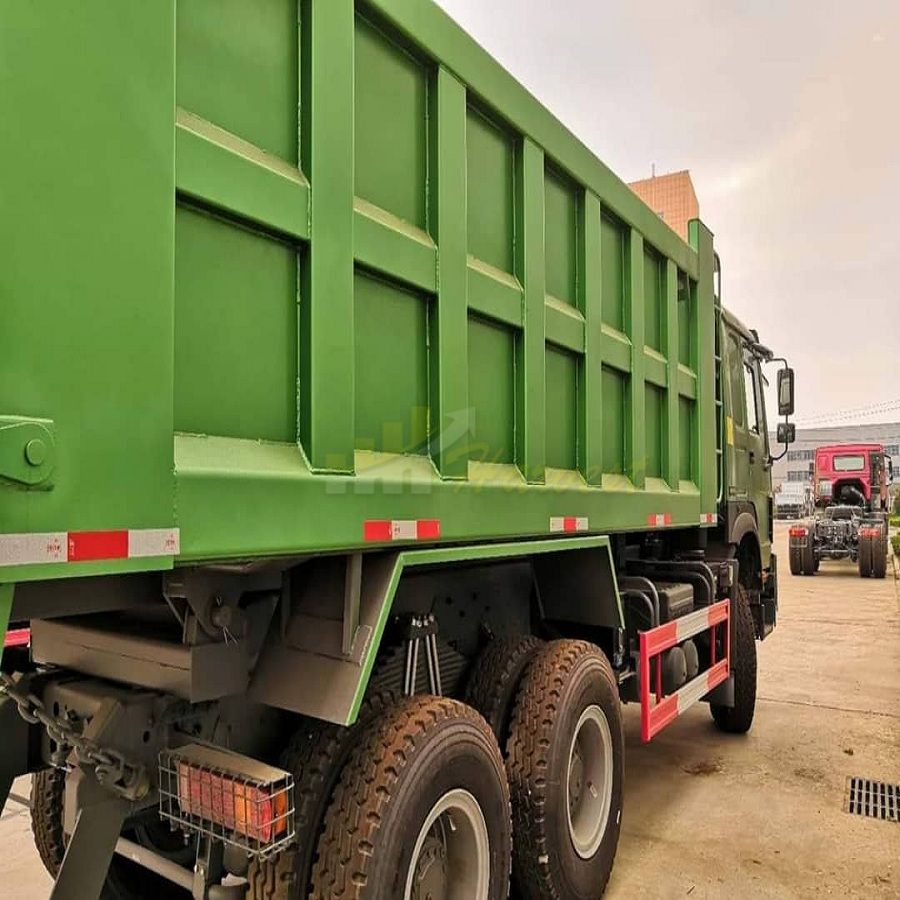

 HOWO 10 Wheelers 380HP 30 Ton SINOTRUK Dump Truck for Philippines

The popular dump truck models include: SINOTRUK HOWO 380hp 6X4 10 wheelers 20 cubic meters dump truck, sinotruk A7 & T7H 380hp 10 wheelers 30 tons 20 cubic meters tipper, SINOTRUK howo 8X4 12 wheeler 40 tons 28cbm, 30cbm, 33cbm & 36cbm dumper.

According to clients' requirements, we can customize different  loading capacity, dump box, color & put logo of customers' company.




Specification

SINOTRUK HOWO 6x4 DUMP TRUCK
ManufactureMade in 2019 yearCNHTC, China
BodyCarriage Internal Dimensions(mm)5600x2300x1500

Size (m3)20m3 16-21m3 for option )

Steel thickness of Carriage(mm)Floor: 8mm/Side: 6mm

SteelQ235

Hydraulic Lift of CarriageMiddle Lift ( HYVA cylinder or front lift for option )
Weight in kgKerb weight (Kg)12770

Loading capacity (Kg) 30000
Dimensions

DimensionsLength(mm)8645


Width(mm)2550


Height(mm)3450

Wheel base (mm)3800+1350
PerformanceMaximum driving speed (km/h)  75

Fuel consumption  (1/100 km)35
Cab

ModelSINOTRUK HW76 Lengthen cab

single bunk, new type seat, adjustable steering wheel, EURO new type heating & ventilating system, Germany VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, left driving, air conditioner
EngineModelCNHTC D10.38-40(Euro IV)

Type6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Horsepower380hp (420hp for option )

Maximum output Kw/r/min276/2000

Maximum torque N.m/r/min1560/1200-1500

Make SINOTRUCK (CNHTC), Euro IV emission standard, Thermostat with 80ºC opening begin, Rigid fan
TransmissionSINOTRUK HW19710 transmission , 10 forward and 2 reverse

I       II       III    IV      V     VI     VII     VIII     IX     X

14.28  10.62   7.87  5.88   4.38   3.27   2.43    1.80    1.34    1

R1-13.91      R2-3.18
ClutchSINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
SteeringZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving), ( ZF8098 RHD right hand drive for option )
Front AxleSINOTRUK HF9 Front Axle,new 9-ton front axle of equipped with drum brakes.
Rear AxlesSINOTRUK HC16 Heavy reduction drive axle, STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio: 5.73;
Brake SystemService brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Wheels & TyresRims: 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.( tubeless for option )
Oil TankSquare type-300L Aluminum alloy fuel tank
