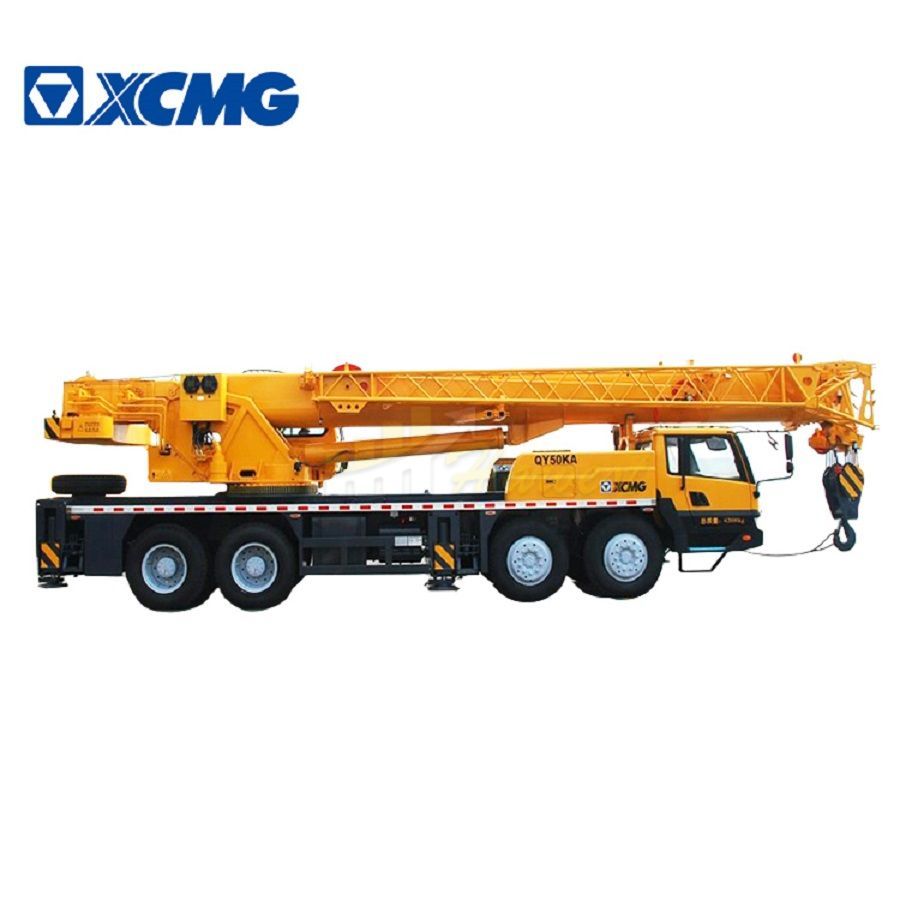

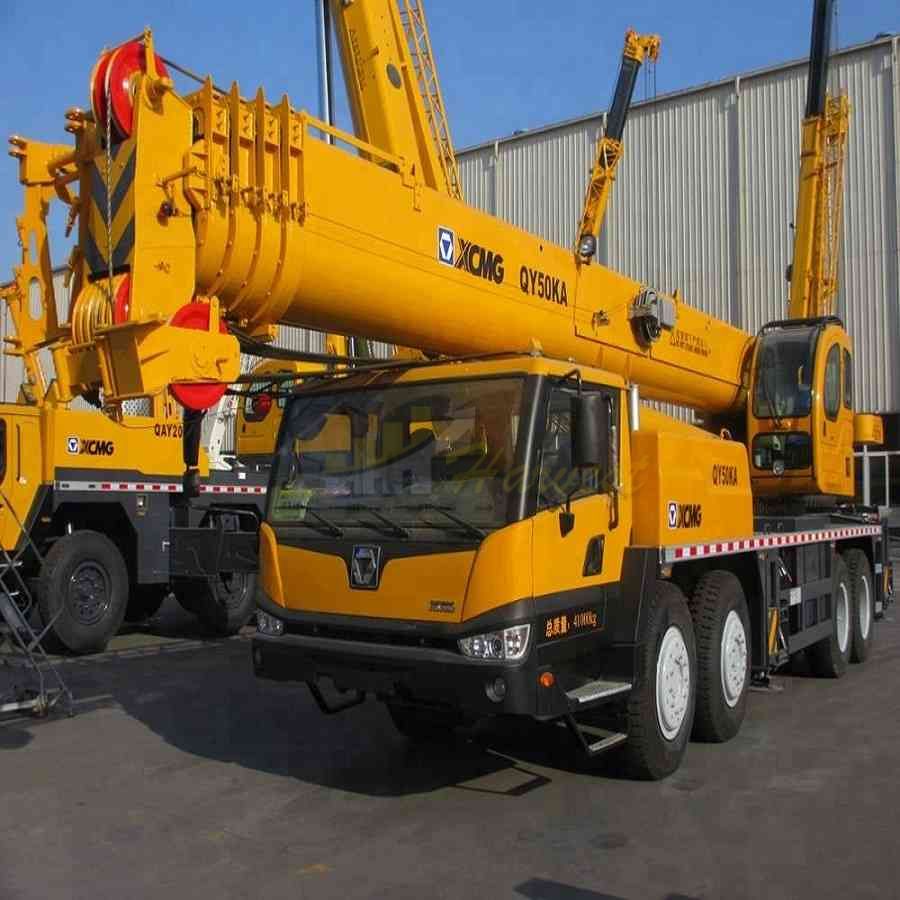

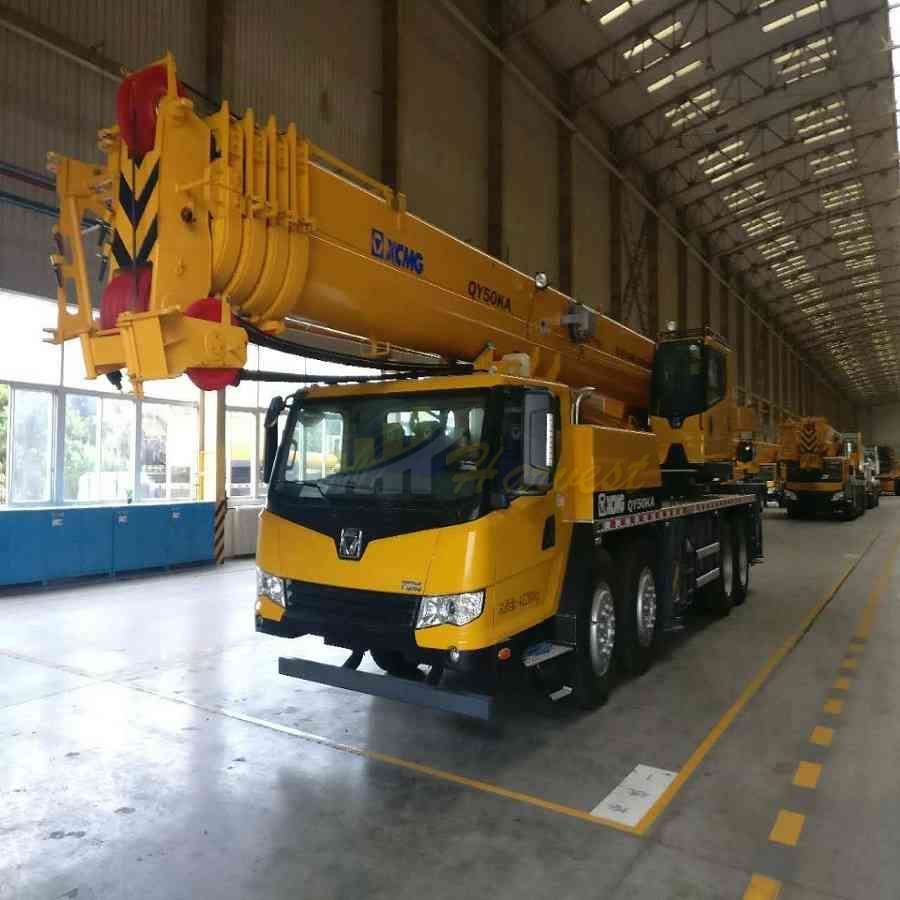

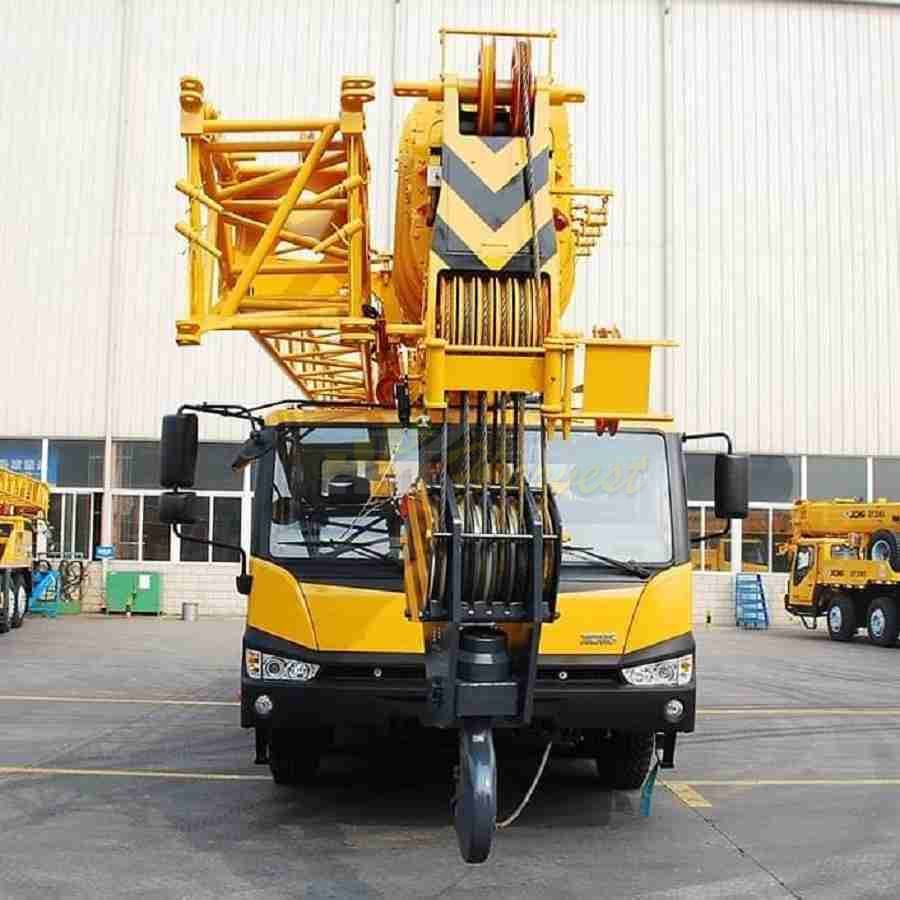

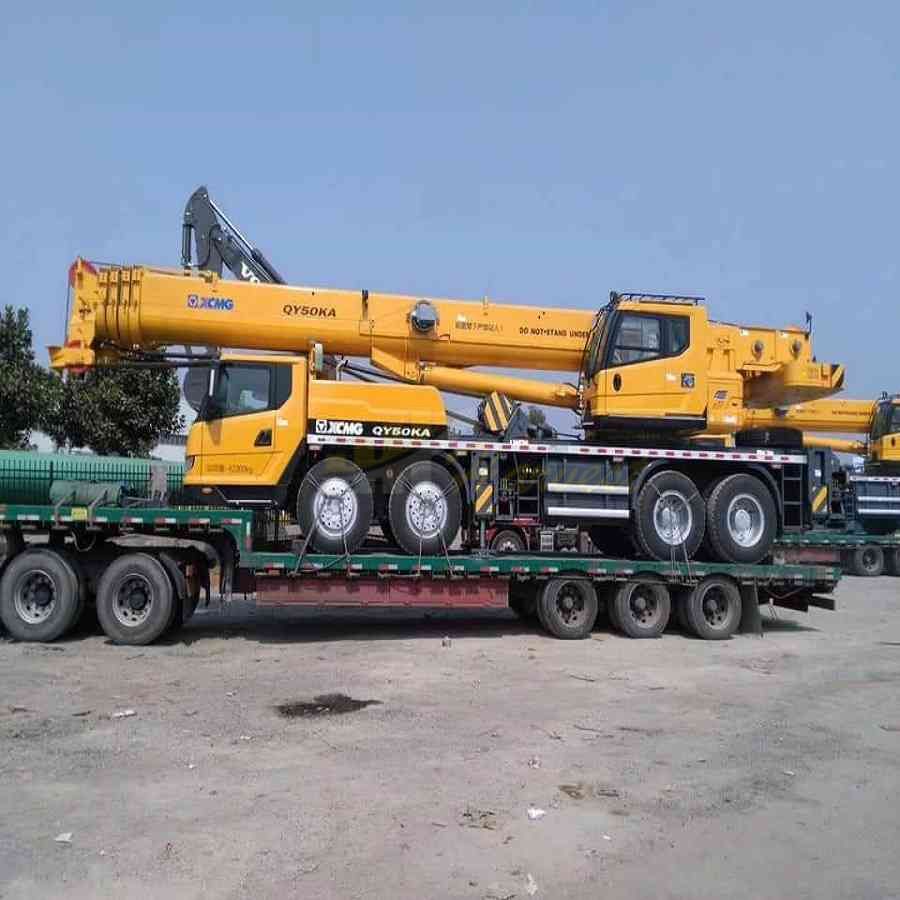

Xcmg 50 Ton Mobile Truck Crane Qy50ka
1. 5-section boom, fully extended boom+jib 59.5m
2. engine: HANGFA WD615.338, 276kW/2200rpm
3. axles: 4 axles
4. pilot control
XCMG QY50KA structure is compact, the industry operating performance is the highest.Lifting performance and driving performance of a comprehensive upgrade, leading competitors.Dual-pump confluence technology, operating efficiency of a comprehensive lead.
Critical system reliability increases, job travel safer.Power shift, manipulation more light.The new upgrade appearance and user-friendly design, driving more comfortable manipulation.
Highlight 1: Reliability of heat dissipation, electrical system etc. has been improved with safer operation and driving
Waterproof connector clip. It is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65.
Aluminium alloy fuel tank. Good appearance quality, corrosion resistance, strong shock resistance capacity.
Double- broken line winch. The hoisting rope is in alignment, and it will be more reliable if turn off the press-rope machine.
Optimized heat-removal system. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45ºC.
Highlight 2: Mature and reliable double-pump confluence technique, maintaining the advantages of efficient operation
Special confluence multi-valve has been designed. The double-pump confluence technique is adopted in raising and falling of winch, extending and retracting of lazy boom and luffing, leading ahead of luffing and extending and retracting operations.
Highlight 3: Air-aid shift gears and 45% of shifting force is reduced
Special air-aid shift gears protection mechanism. The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
Highlight 4: Appearance molding is newly upgraded, humanized design and comfortable riding manipulation
New operating house, wheel house, engine hood and machine shed, novel appearances, fine lines of the complete machine appearance, shows its elegant appearance.
|Max.rated lifting capacity||50000||kg|
|Min.rated working radius||3||m|
|Boom Length||Base Boom||11.4||m|
|Fully Extended Boom||43.5||m|
|Fully Extended Boom+jib||59.5||m|
|Lifting Height||Base Boom||11.9||m|
|Fully Extended Boom||44||m|
|Fully Extended Boom+jib||58.1||m|
|Total Vehicle Mass in travel configuration||42200||kg|
|Axle Load||Front Axle||16200||kg|
|Engine Rated Power||276/2200||kw/(r/min)|
|Engine Rated Torque||1500/1300-1600||N.m/(r/min)|
|Max. Travel Speed||85||Km/h|
|Oil Consumption per 100km||40||L|
